Kia Carens: Trunk Trim / Repair procedures

Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Trunk Trim / Repair procedures

Replacement
[5-seat vehicle]

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
2.
Remove the cargo screen (A).
3.
After loosening the mounting nuts, then remove the luggage rear tray (B).
4.
Using a screwdriver or remover, remove the rear transverse trim (C).
5.
Remove the luggage covering board (D).
6.
After loosening the mounting screws, then remove the luggage side trim (E).
7.
Install in the reverse order of removal.

Replace any damaged clips.

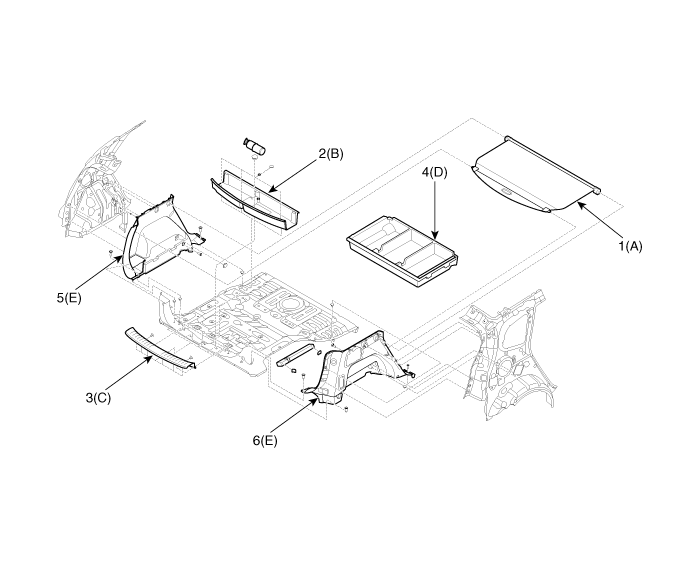

1. Cargo screen
2. Luggage rear tray
3. Rear transverse trim
4. Luggage covering board
5. Luggage side trim [LH]
6. Luggage side trim [RH]

[7-seat vehicle]

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the third row seat.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
3.
Remove the cargo screen (A).
4.
After loosening the mounting nuts, then remove the luggage rear tray (B).
5.
Using a screwdriver or remover, remove the rear transverse trim (C).
6.
After loosening the mounting screws, then remove the luggage side trim (D).
7.
Install in the reverse order of removal.

Replace any damaged clips.

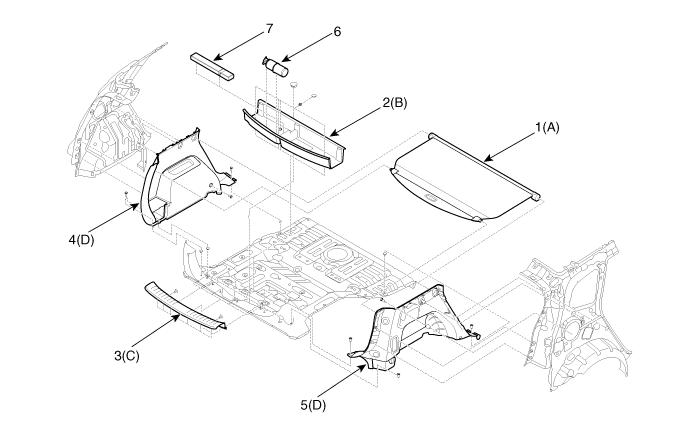

1. Cargo screen
2. Luggage rear tray
3. Rear transverse trim
4. Luggage side trim [LH]
5. Luggage side trim [RH]
6. Fire extinguisher
7. Warning triangle
