Kia Carens: Timing System / Drive Belt Tensioner Components and components location

Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Timing System / Drive Belt Tensioner Components and components location

Components

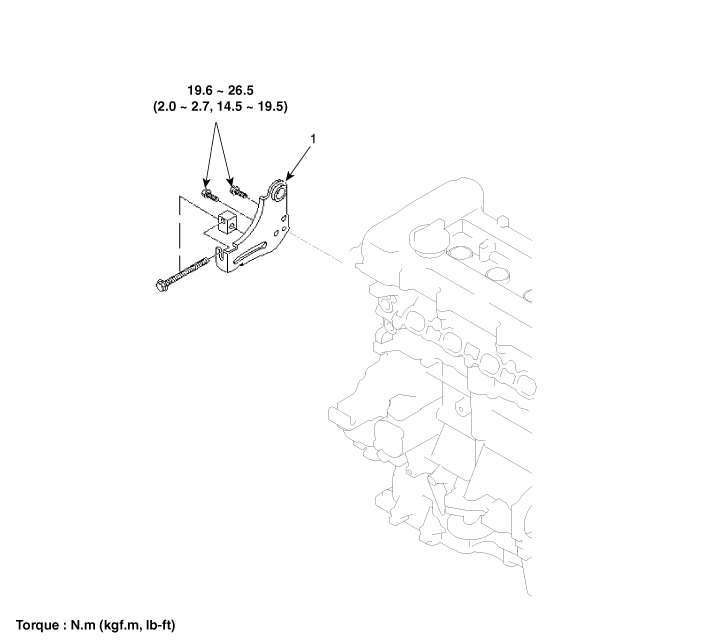

1. Drive belt tensioner

Idler Repair procedures

Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the idler(A). ...

Drive Belt Tensioner Repair procedures

Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the alternator. ...
