Kia Carens: Engine Control System / Rail Pressure Sensor (RPS) Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Engine Control System / Rail Pressure Sensor (RPS) Schematic diagrams

Circuit Diagram

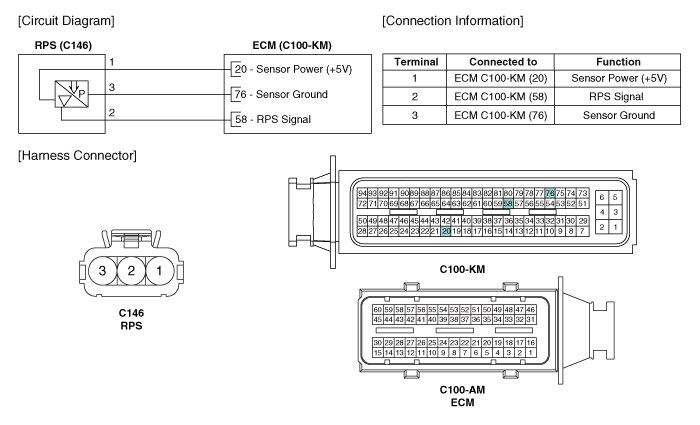

(M/T)

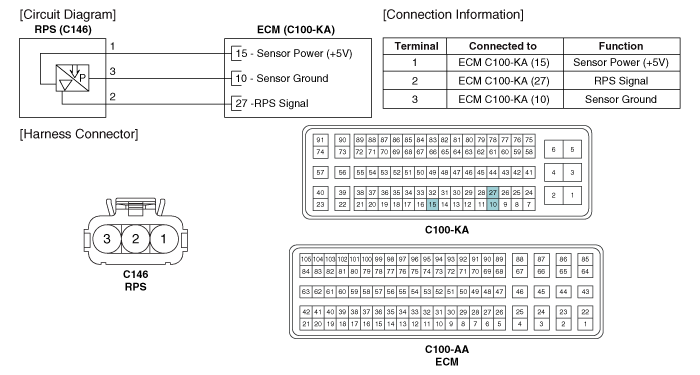

(A/T)

Rail Pressure Sensor (RPS) Troubleshooting
Signal Waveform ...

Rail Pressure Sensor (RPS) Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the RPS at idle and various engine spee ...
