Kia Carens: Driving your vehicle / Lane departure warning system (LDWS)

Kia Carens RP (2013-2018) Owners Manual / Driving your vehicle / Lane departure warning system (LDWS)

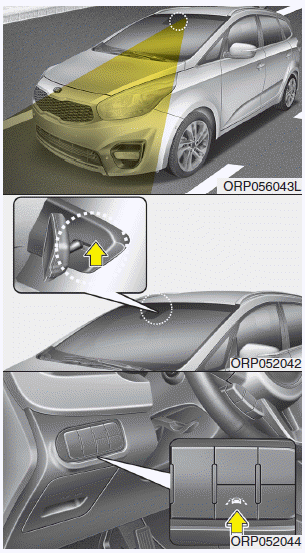

This system detects the lane with the sensor at the front windshield and warns you when your vehicle leaves the lane.

WARNING

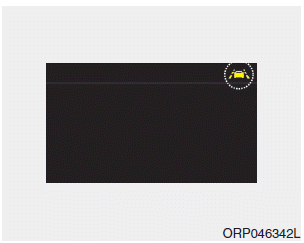

To operate the LDWS, press the switch with the ignition in the ON position. The indicator illuminates on the cluster. To cancel the LDWS, press the switch again.

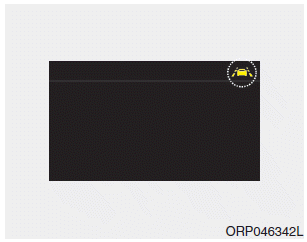

If you select this symbol, the LDWS mode on the LCD display will appear.

If your vehicle leaves the lane when the LDWS is operating and vehicle speed exceeds 60km/h, the warning operates as follows:

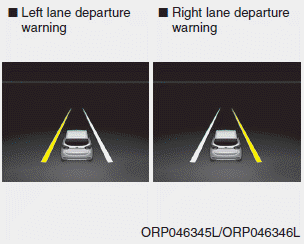

1. Visual warning

If you leave the lane, the lane you leave on the LCD display blinks yellow with 0.8 second of interval.

2. Auditory warning

If you leave the lane, the warning sound operates with 0.8 second of interval.

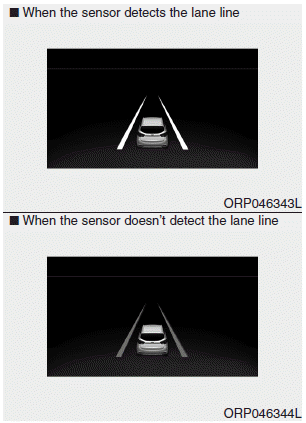

The color of symbol will change depend on the condition of LDWS system.

- White color : It means the sensor does not detect the lane line.

- Green color : It means the sensor detects the lane line.

DRIVER'S ATTENTION
The driver must be cautious in the below situations for the system may not assist the driver and may not work properly. Do not stick or attach anything to the windshield in front of the camera as ...

Warning indicator

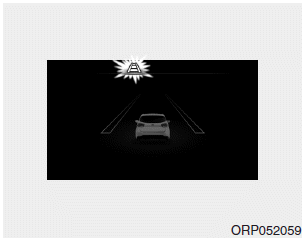

If the LDWS FAIL warning indicator comes on (yellow indicator), the LDWS is not working properly. We recommend that the system be checked by an authorized Kia dealer. ...
