Kia Carens: Engine Control System / Knock Sensor (KS) Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Engine Control System / Knock Sensor (KS) Schematic diagrams

Circuit Diagram

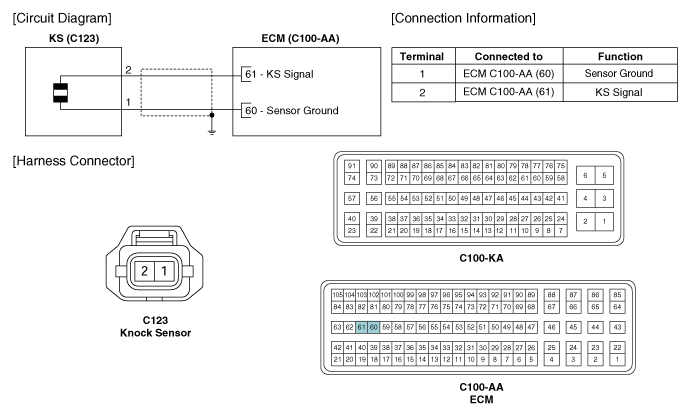

(M/T)

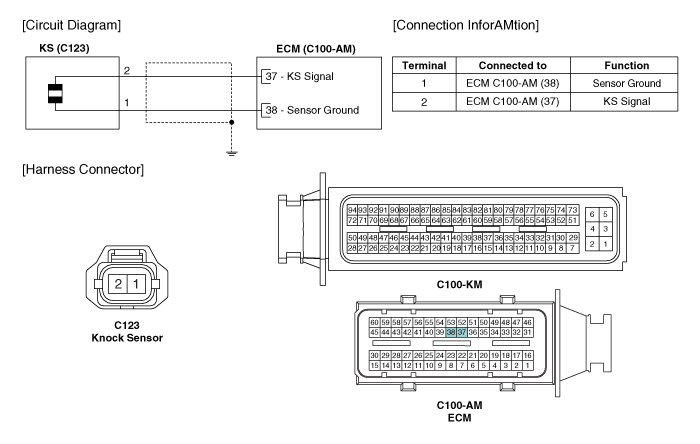

(A/T)

Knock Sensor (KS) Specifications
Specification Item Specification Capacitance (pF) 950 ~ 1,350 Resistance (MΩ) 4.87 ...

Knock Sensor (KS) Repair procedures
Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the intake manifold. (Refer to En ...
