Kia Carens: Fuse/relay panel description / Inner fuse panel

Kia Carens RP (2013-2018) Owners Manual / Maintenance / Fuses / Fuse/relay panel description / Inner fuse panel

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

✽ NOTICE

The actual fuse/relay panel label may differ from equipped items.

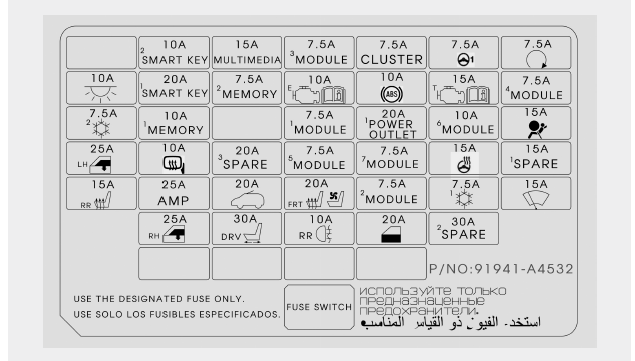

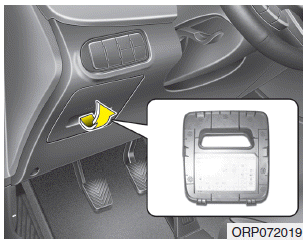

Instrument panel (Driver’s side fuse panel)

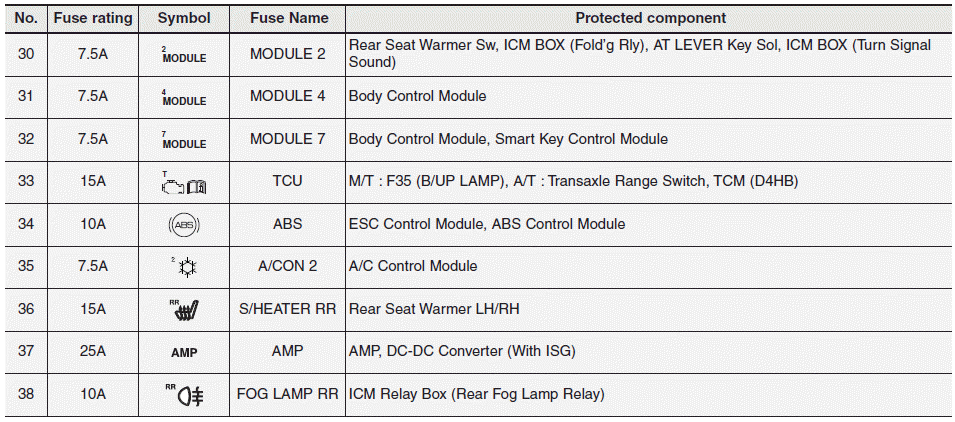

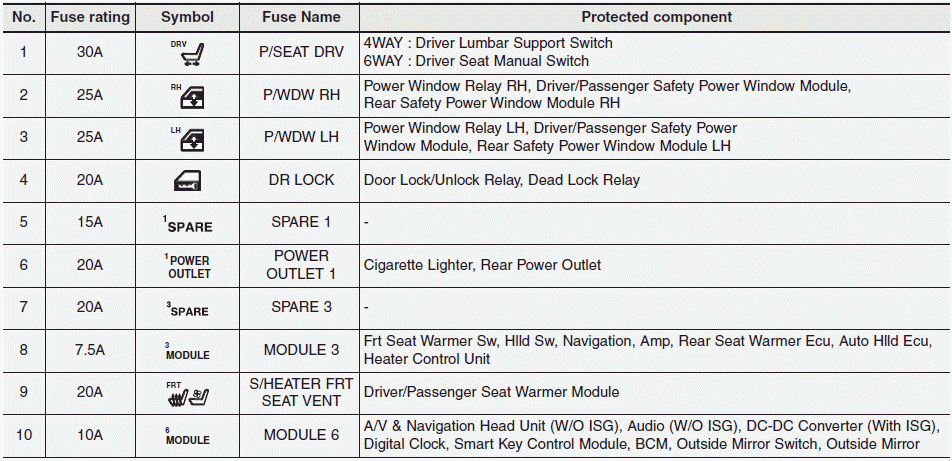

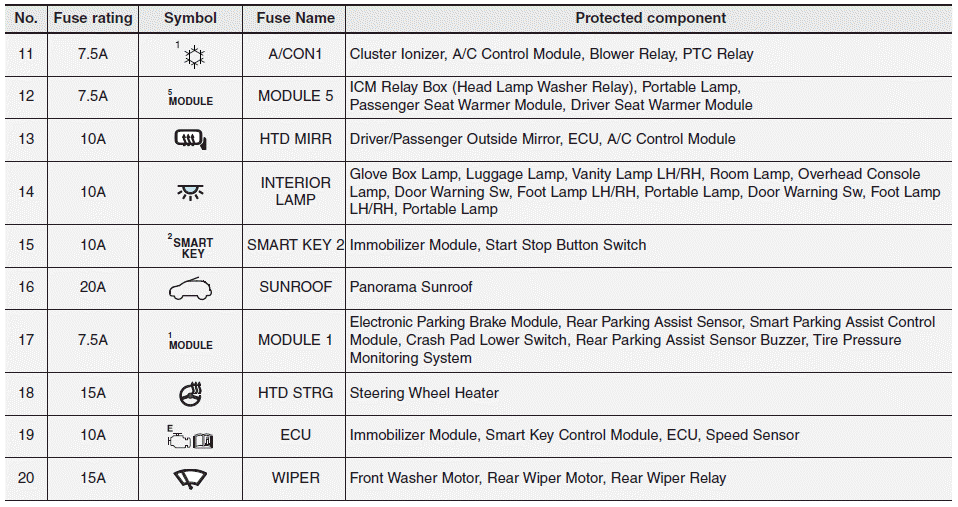

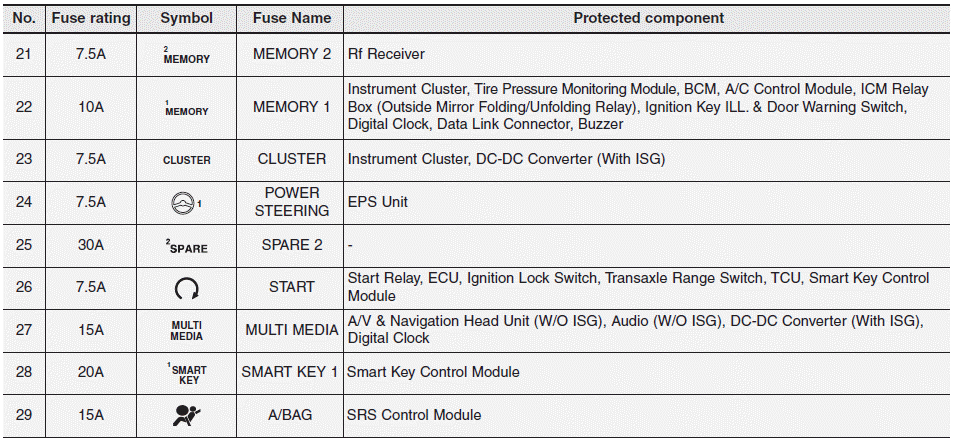

Fuse/relay panel description
...

Engine compartment fuse panel (for gasoline engine)
✽ NOTICE The actual fuse/relay panel label may differ from equipped items. ...
