Kia Carens: Automatic Transaxle Control System / Inhibitor Switch Troubleshooting

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Inhibitor Switch Troubleshooting

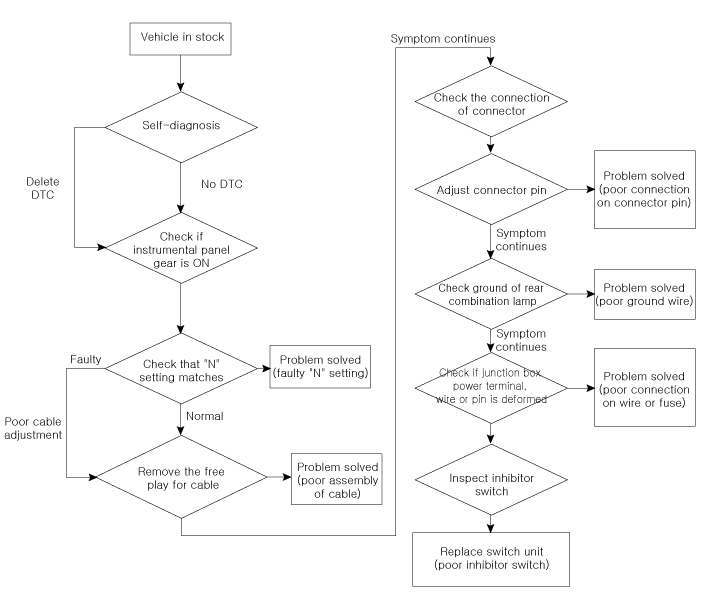

Troubleshooting

Inhibitor Switch Description and operation
Description • The inhibitor switch is installed on top of transaxle, and is connected to the shift lever by a shift cable. • I ...

Inhibitor Switch Schematic diagrams
Circuit Diagram ...
