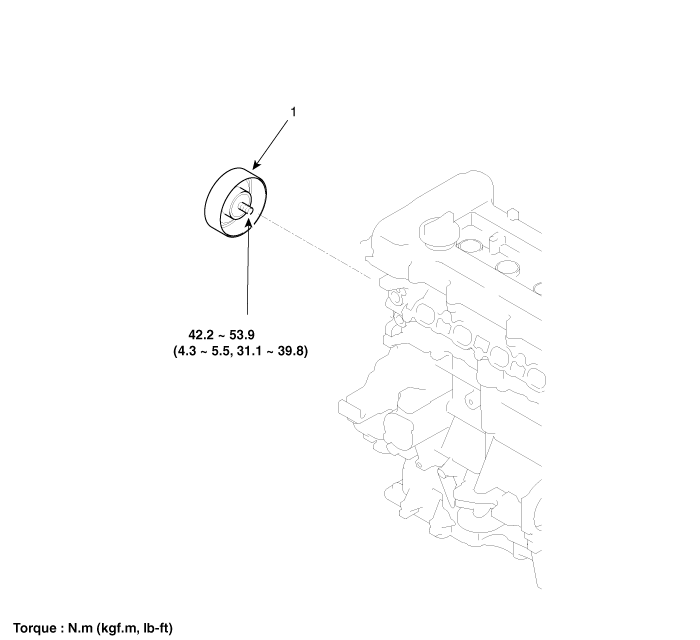

Components

1. Idler

Drive Belt Repair procedures

Removal 1. Disconnect the battery negative terminal. 2. Loosen the alternator tension adjusting bolt (A) to loosen tension. ...

Idler Repair procedures

Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the idler(A). ...
