Kia Carens: Controller / Heater & A/C Control Unit (Manual) Components and components location

Kia Carens RP (2013-2018) Service Manual / Heating,Ventilation And Air Conditioning / Controller / Heater & A/C Control Unit (Manual) Components and components location

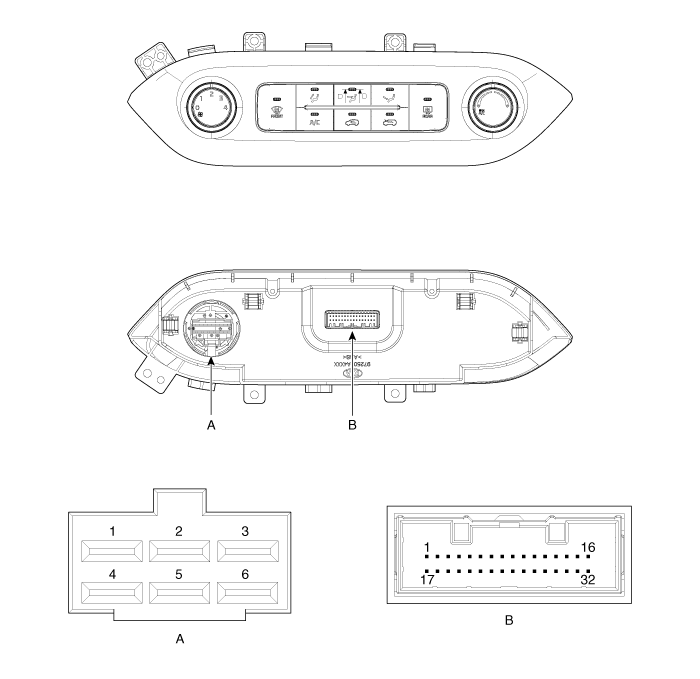

Component

Connector Pin Function
Connector
 Pin No
Function
Connector
 Pin No
Function
A
1
GND
B
14
BLOWER ON SIGNAL TO COMMON
2
M/HIGH
15
MAX BLOWER ON SIGNAL
3
M/LOW
16
ILL - (RHEO)
4
HIGH
17
IGN2
5
COMMON
18
IGN1
6
LOW
19
SENSOR REF (+5)
B
1
ILL+ (TAIL)
20
EVA SENSOR (+)
2
BATTARY
21
AMB SENSOR (+)
3
MODE ACT'R (VENT)
22
PTC RELAY 2
4
MODE ACT'R (DEF)
23
PTC RELAY 3
5
TEMP ACT'R (COOL)
24
HTD
6
TEMP ACT'R (WARM)
25
Rr DEFOG SW
7
INTAKE ACT'R (FRE)
26
C_CAN HIGH
8
INTAKE ACT'R (REC)
27
C_CAN LOW
9
PTC ON SIGNAL
28
HAZARO BLINK SIGNAL
10
DETENT OUT (+)
29
ECV +
11
MODE ACT'R F/B
30
ECV - (GND)
12
TEMP ACT'R F/B
31
SENSOR GND
13
INTAKE ACT'R F/B
32
GND

Controller
...

Heater & A/C Control Unit (Manual) Repair procedures
Replacement 1. Disconnect the negative (-) battery terminal. 2. Using a screwdriver or remover, remove the crash pad center garnish ...
