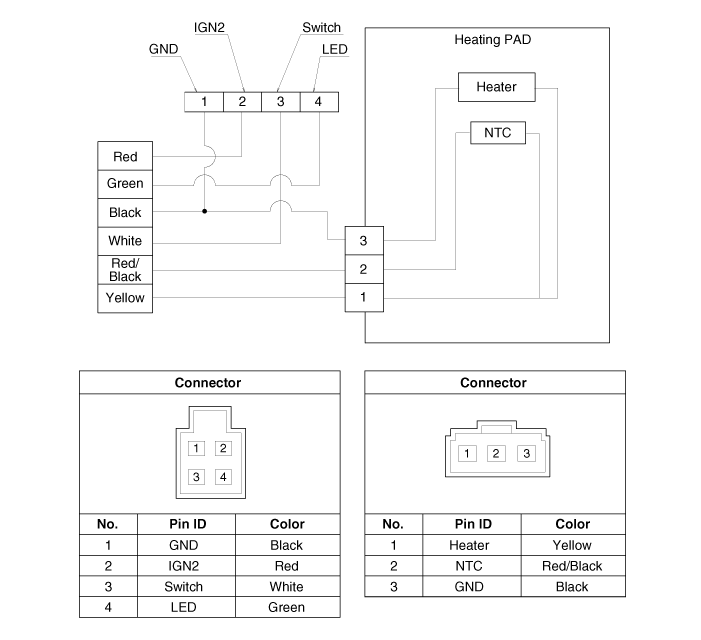

System Circuit Diagram

Heated Steering wheel Description and operation
Description Heated pads to grip the steering grip makes the fever. 1. Heated control unit 2. Heated pad ...

Heated Steering wheel Repair procedures
Inspection 1. Measure a resistance of NTC and Heated pad. – NTC resistance(Red / Black) - 10kΩ (±10%, 25°C) ...
