Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Wiper Arm Components and components location

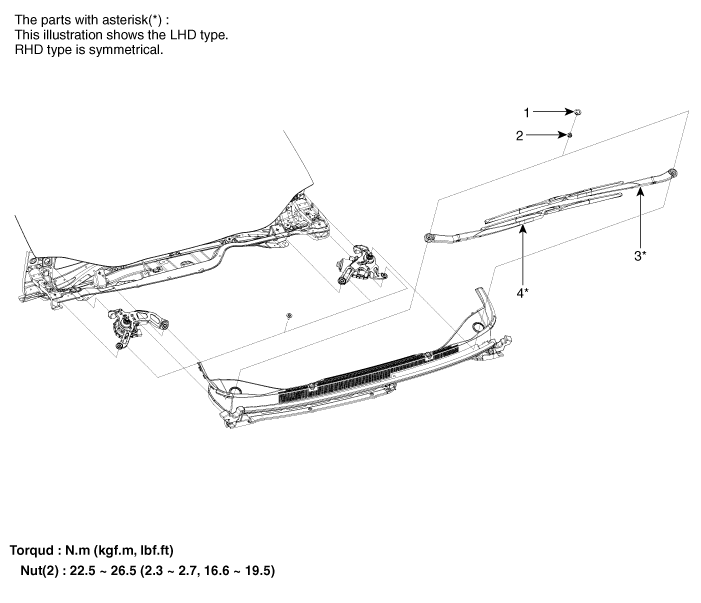

Component Location

1. Windshield wiper arm cap
2. Nut

3. Wiper arm & blade (Driver's side)
4. Wiper arm & blade (Passenger's side)

Windshield Wiper-Washer Switch Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering column upper and lower shrouds. (Refer to Body ...

Front Wiper Arm Repair procedures

Removal If you remove a wiper arm, replace it with a new one. If you reassemble the removed arm, its s ...
