Kia Carens: Blade replacement / Front windshield wiper blade
.png)
Type A

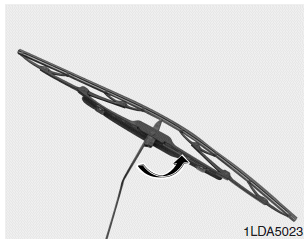

1. Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.
CAUTION
Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.
.png)

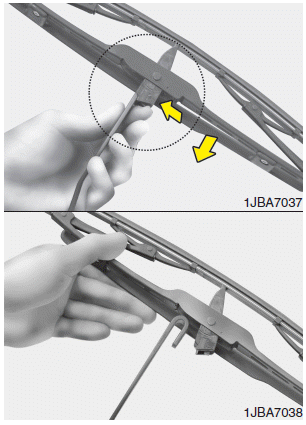

2. Compress the clip and slide the blade assembly downward.
3. Lift it off the arm.
4. Install the blade assembly in the reverse order of removal.
- Type A
When installing, the front side should be heading for the rear of the vehicle and the rear side should be heading for the front of the vehicle.
.png)
- Type B

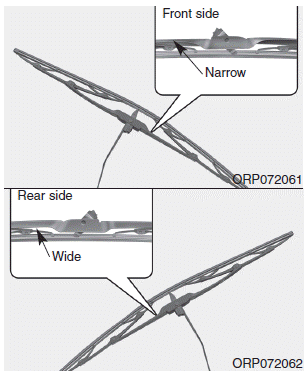

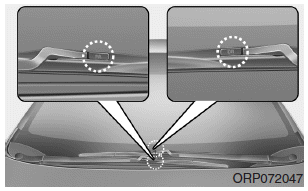

Install suitably after checking the following symbols.
.png)
.png)
Type B

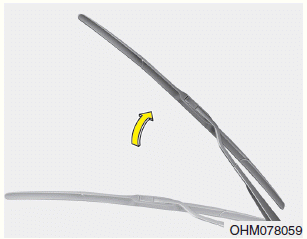

1. Raise the wiper arm.
CAUTION
Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.
.png)
2. Turn the wiper blade clip. Then lift up the blade clip.

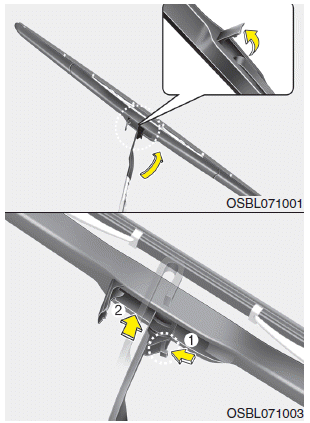

3. Push the clip (1) and push up the wiper arm (2).
.png)

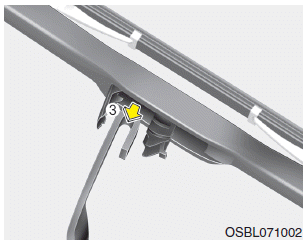

4. Push down the wiper arm (3) and install the new blade assembly in the reverse order of removal.
5. Return the wiper arm on the windshield.
Blade replacement
When the wipers no longer clean adequately, the blades may be worn or cracked,
and require replacement.
CAUTION
To prevent damage to the wiper arms or other components, do not attempt to
move the wi ...
Rear window wiper blade
1. Raise the wiper arm and pull out the wiper blade assembly.
2. Install the new blade assembly by inserting the center part into the slot
in the wiper arm until it clicks into place.
3. Make sure ...
