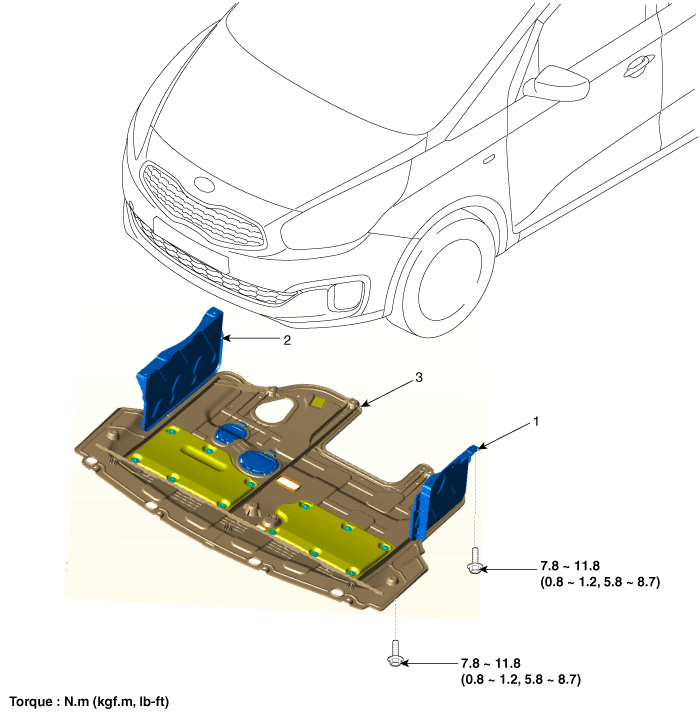

Components

1. Side cover (LH)
2. Side cover (RH)

3. Under cover

Engine And Transmission Assembly

...

Engine Room Under Cover Repair procedures

Removal and Installation Engine Room Under Cover 1. Remove the engine room under cover (A). Tightening torque: 7.8 ~ 11.8 ...
