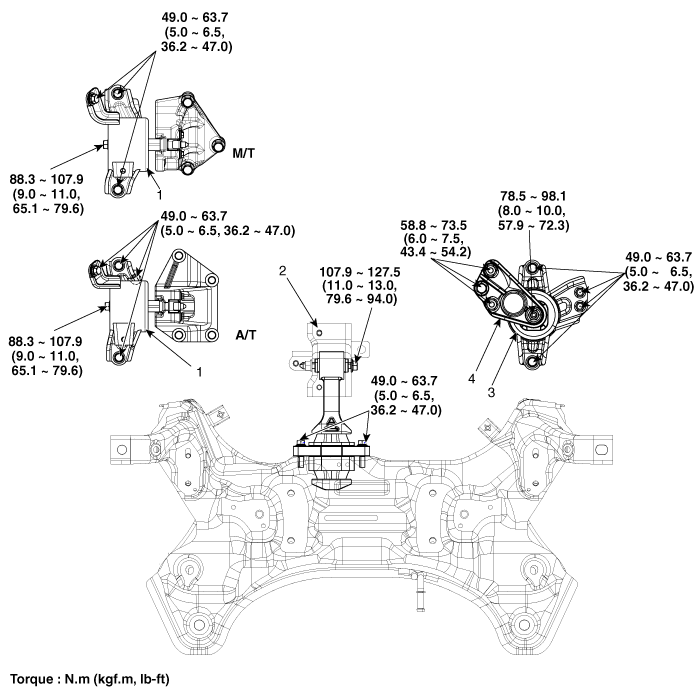

Components

1. Transaxle mounting bracket
2. Roll road bracket

3. Engine mounting bracket
4. Engine mounting support bracket

Engine Room Under Cover Repair procedures

Removal and Installation Engine Room Under Cover 1. Remove the engine room under cover (A). Tightening torque: 7.8 ~ 11.8 ...

Engine Mounting Repair procedures

Removal and Installation Engine Mounting Bracket 1. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under ...
