Kia Carens: Parking Brake System / Electronic Parking Brake (EPB) Components and components location

Kia Carens RP (2013-2018) Service Manual / Brake System / Parking Brake System / Electronic Parking Brake (EPB) Components and components location

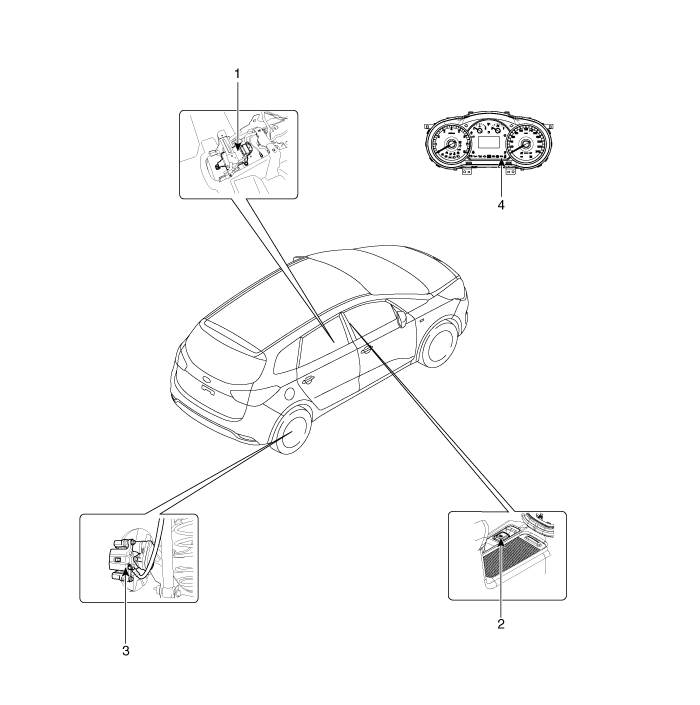

Components

1. EPB Unit
2. EPB Switch
3. Brake Caliper
4. EPB Warning Lamp
