Kia Carens: Airbag Module / Driver Airbag (DAB) Module and Clock Spring Components and components location

Kia Carens RP (2013-2018) Service Manual / Restraint / Airbag Module / Driver Airbag (DAB) Module and Clock Spring Components and components location

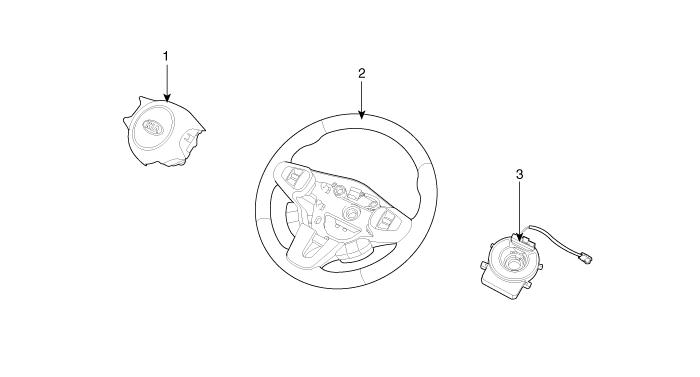

Components

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring

Driver Airbag (DAB) Module and Clock Spring Description and operation
Description Driver Airbag (DAB) is installed in the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when f ...

Driver Airbag (DAB) Module and Clock Spring Repair procedures
Removal 1. Set the front tires straight-ahead before removing the steering wheel.    ...
