Kia Carens: Air bag - supplemental restraint system / Curtain air bag

Kia Carens RP (2013-2018) Owners Manual / Safety features of your vehicle / Air bag - supplemental restraint system / Curtain air bag

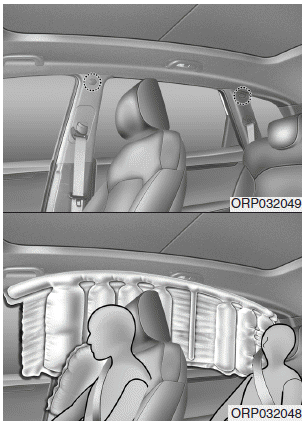

Curtain air bags are located along both sides of the roof rails above the front and rear doors.

They are designed to help protect the heads of the front seat occupants and the rear outboard seat occupants in certain side impact collisions.

The curtain air bags are designed to deploy during certain side impact collisions, depending on the crash severity, angle, speed and point of impact. The curtain air bags are not designed to deploy in all side impact situations, collisions from the front or rear of the vehicle or in most rollover situations.

WARNING - No attaching objects

WARNING

Why didn’t my air bag go off in a collision? (Inflation and noninflation conditions of the air bag)

There are many types of accidents in which the air bag would not be expected to provide additional protection.

These include rear impacts, second or third collisions in multiple impact accidents, as well as low speed impacts.

Side air bag
Your vehicle is equipped with a side air bag in each front seat. The purpose of the air bag is to provide the vehicle's driver and/or the front passenger with additional protection than that offered ...

Air bag collision sensors
(1) SRS control module (2) Front impact sensor (3) Side impact sensor (4) Side impact sensor WARNING Do not hit or allow any objects to impact the locations where air bag or sensors are installed ...
