Kia Carens: Cruise Control System / Cruise Control Switch Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Electrical System / Cruise Control System / Cruise Control Switch Schematic diagrams

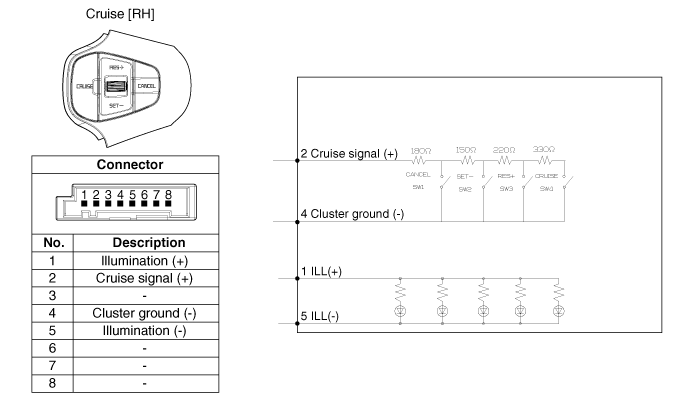

Circuit Diagram

Cruise Control Switch Components and components location
Components 1. Remote control switch (LH: Audio) 2. Remote control switch (RH: Cruise + Limit) 3. Bluetooth handfree switch 4. Trip switch (Trip + Fl ...

Cruise Control Switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the driver airbag module. (Refer to Restraint - "Driver ...
