Inspection
1.
Check the condenser fins for clogging and damage. If clogged, clean them with water, and blow them with compressed air. If bent, gently bend them using a screwdriver or pliers.
2.
Check the condenser connections for leakage, and repair or replace it, if required.
Replacement
1.
Recover the refrigerant with a recovery/recycling/charging station.
2.
Disconnect the negative (-) battery terminal.
3.
Remove the front bumper.
(Refer to Body - "Front Bumper Cover")
4.
Remove the 2 nuts, and then disconnect the discharge line (A) and liquid line (B) from the condenser.

5.
Remove the intake shield cover (A) by loosening the mounting bolts.
[LH]

[RH]

6.
Remove the side air guard (A) by pulling it upwards.
[LH]

[RH]

7.

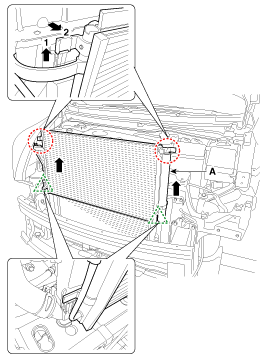

Remove the condenser (A) from radiator.

8.
Install in the reverse order of removal.

If you're installing a new condenser, add refrigerant oil.
Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a or R-1234yf to avoid leakage.
Be careful not to damage the radiator and condenser fins when installing the condenser.
Charge the system, and test its performance.
