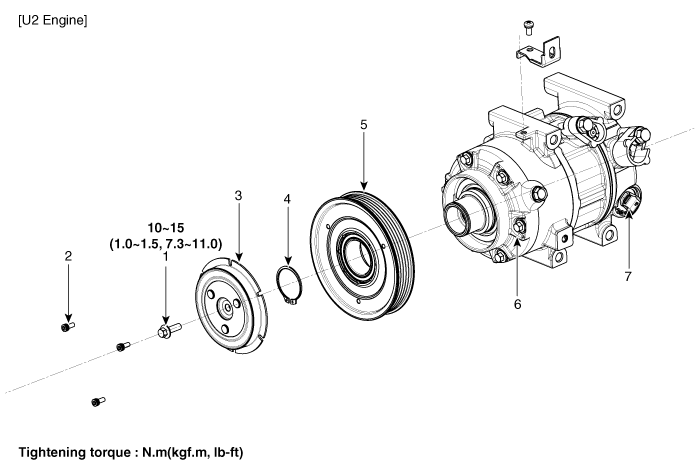

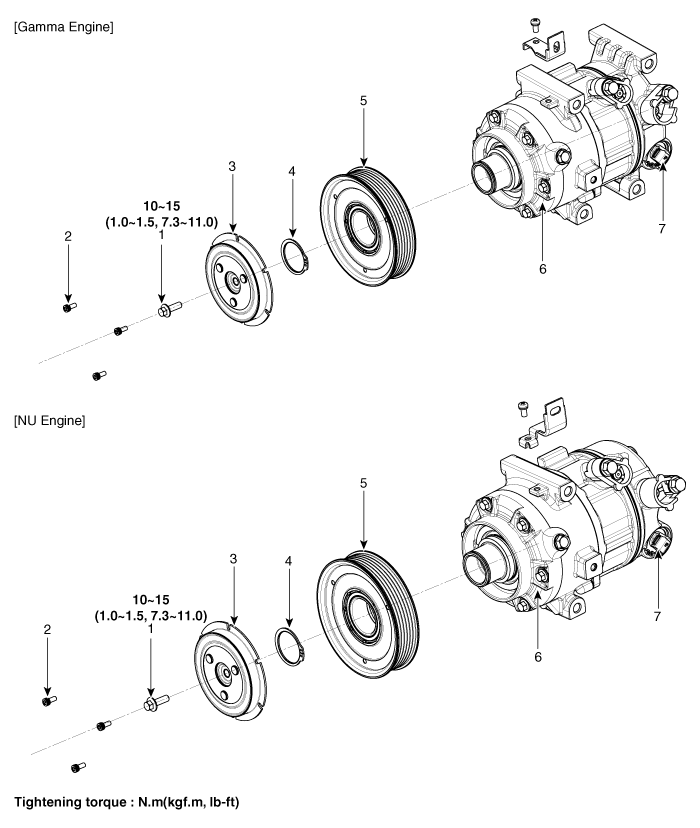

Components

1. Clutch Bolt
2. Limiter Bolt
3. Limiter & Hub Assembly
4. Snap Ring

5. Pulley
6. Compressor Assembly
7. Electric Control Valve (ECV)

Compressor Description and operation

Description The compressor is the power unit of the A/C system. It is located on the side of engine block and driven by a V-belt of the engine. The compressor changes low pr ...

Compressor Repair procedures

Removal 1. If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine ...
