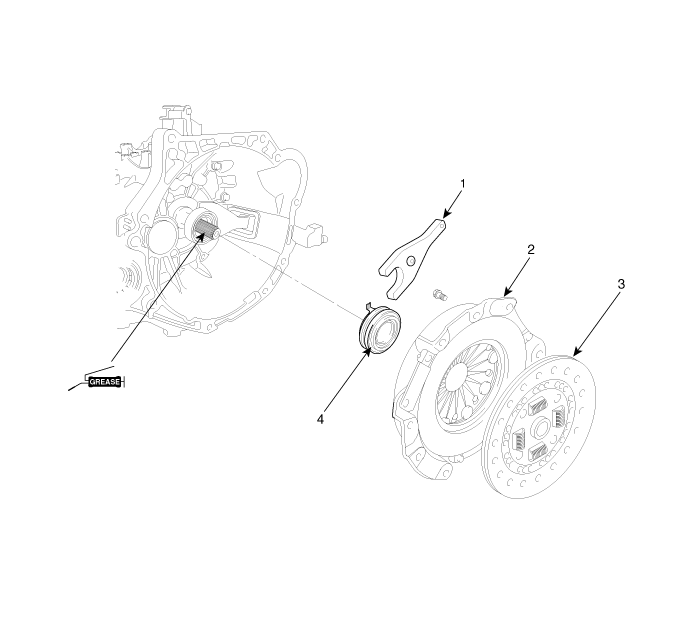

Components

1. Clutch release fork
2. Clutch cover assembly

3. Clutch disk assembly
4. Clutch release bearing

Clutch Release Fork and Clutch Release Bearing

...

Repair procedures

Removal 1. Remove the transaxle assembly. G 1.6 GDI (Refer to Manual Transaxle System - " Manual Transaxle") G 2.0 GDI (Refer to Manual ...
