Kia Carens RP (2013-2018) Service Manual / Clutch System / Clutch Pedal / Components and components location

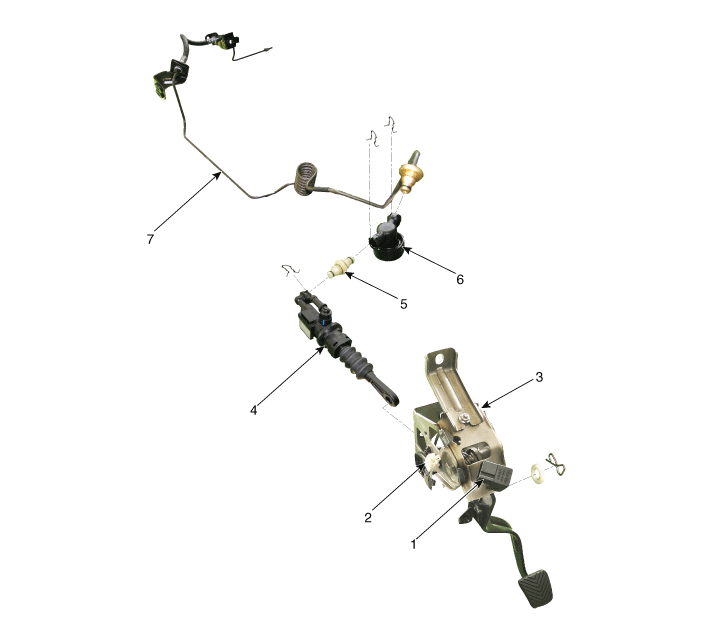

Components

1. Clutch switch
2. Ignition lock switch
3. Clutch pedal assembly
4. Master cylinder assembly

5. Connector (Only diesel)
6. Regulator (Only diesel)
7. Clutch tube

Repair procedures

Removal 1. Remove the battery. G 1.6 GDI (Refer to Engine Electrical System - "Battery") G 2.0 GDI (Refer to Engine Electrical System - &qu ...
