Kia Carens: Evaporative Emission Control System / Components and components location

Kia Carens RP (2013-2018) Service Manual / Emission Control System / Evaporative Emission Control System / Components and components location

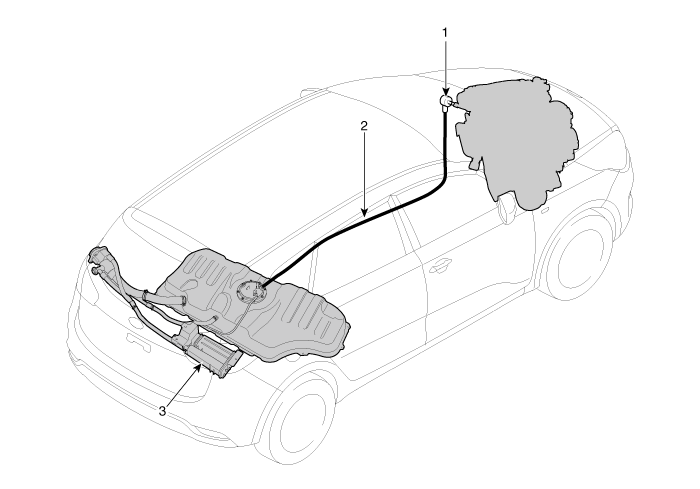

Components Location

1. Purge Control Solenoid Valve (PCSV)
2. Vapor line
3. Canister

Schematic diagrams

Schematic Diagram Canister Canister is filled with charcoal and absorbs evaporated vapor in fuel tank. The gathered fuel vapor in canister is drawn into the intake manifold ...

Canister Repair procedures

Removal 1. Lift the vehicle. 2. Disconnect the vapor hose quick-connector (A) and ventilation hose (B). 3. ...
