Kia Carens RP (2013-2018) Service Manual / Emission Control System / General Information / Components and components location

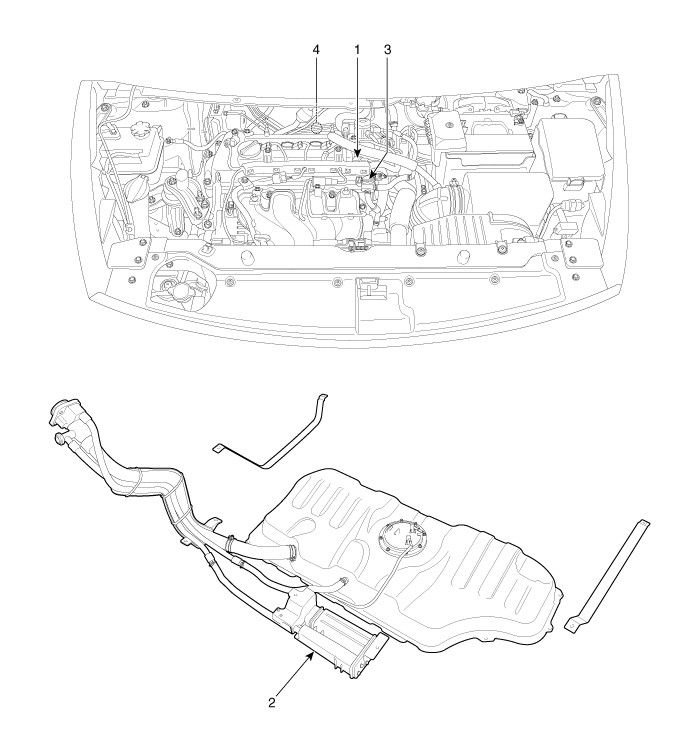

Components Location

1. PCV valve
2. Canister

3. Purge control solenoid valve (PCSV)
4. Catalytic converter (WCC/UCC)

1. PCV valve
2. Canister

3. Purge control solenoid valve (PCSV)
4. Catalytic converter (WCC)

5. Catalytic converter (UCC)



Schematic diagrams
Schematic Diagram ...

Crankcase Emission Control System
...
