Kia Carens: Button Engine Start System / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Button Engine Start System / Components and components location

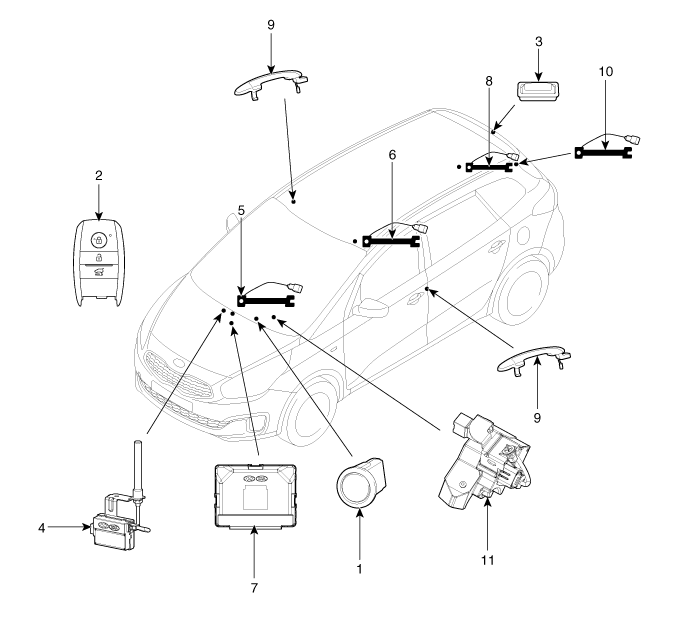

Component Location

1. Start Stop Button(SSB)
2. FOB key
3. Tailgate open switch
4. RF receiver
5. Interior antenna 1
6. Interior antenna 2
7. Smart key unit
8. Trunk antenna
9. Door handle & door antenna
10. Bumper antenna
11. Electronic steering column lock (ESCL)

Button Engine Start System
...

Schematic diagrams
Circuit Diagram (1) Circuit Diagram (2) ...
