Kia Carens: Panorama Sunroof / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Panorama Sunroof / Components and components location

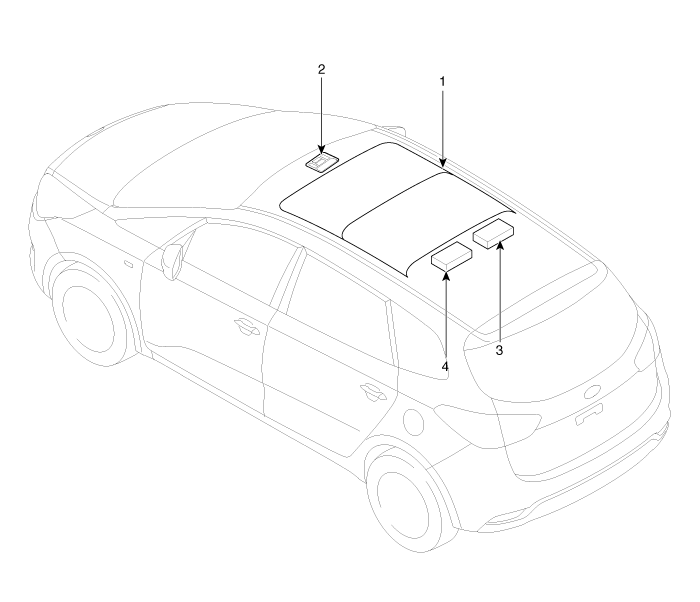

Component Location

1. Panorama sunroof
2. Panorama sunroof switch

3. Panorama sunroof motor & controller
4. Roller blind motor & slave controller
