Kia Carens: Power Door Locks / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Power Door Locks / Components and components location

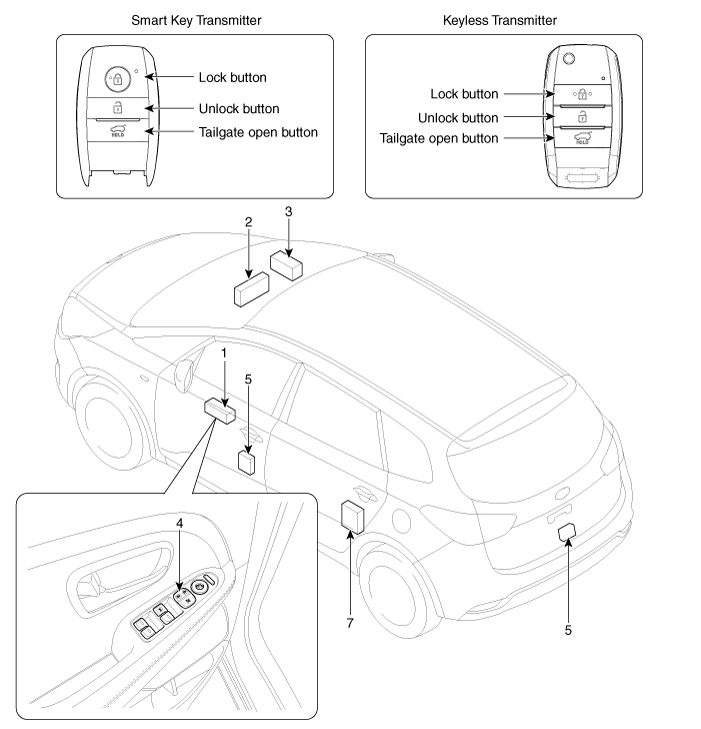

Component Location

1. Driver power window main switch
2. Center fasicia door lock switch
3. BCM (Body Control Module)
4. Door lock switch
5. Tailgate lock actuator & switch
6. Front door lock actuator & switch
7. Rear door lock actuator & switch

Power Door Locks
...

Power Door Lock Actuators Repair procedures
Inspection Front Door Lock Module Inspection 1. Remove the front door trim. (Refer to Body - "Front Door Trim") 2. ...
