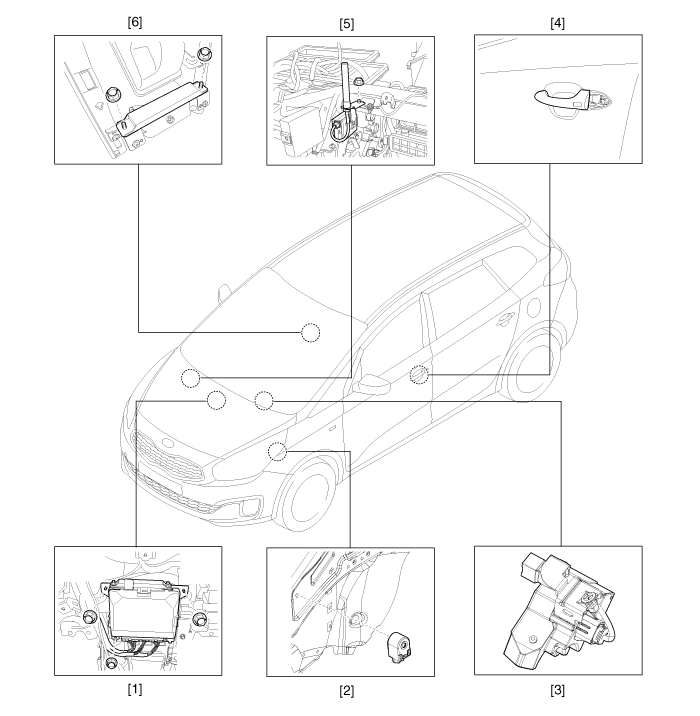

Component Location (1)

1. Smart key unit and interior antenna 1
2. Buzzer
3. Electronic steering column lock (ESCL)
4. Door outside handle
5. RF receiver
6. Interior antenna 2
7. Interior antenna 3

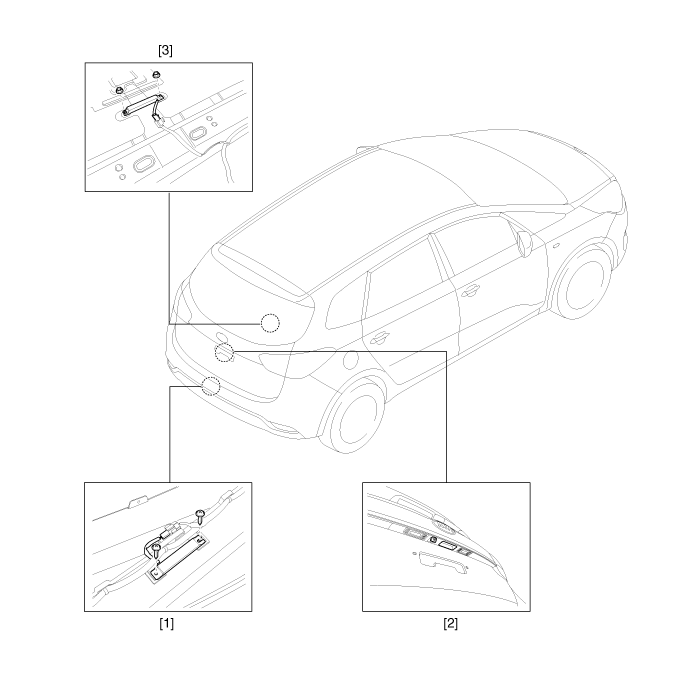

Component Location (2)

1. Bumper antenna
2. Tailgate open switch
3. Interior antenna 3

Specifications
Specifications Smart Key Unit Items Specification Rated voltage DC 12V Operating voltage DC 9 ~ ...

Description and operation
Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote co ...
