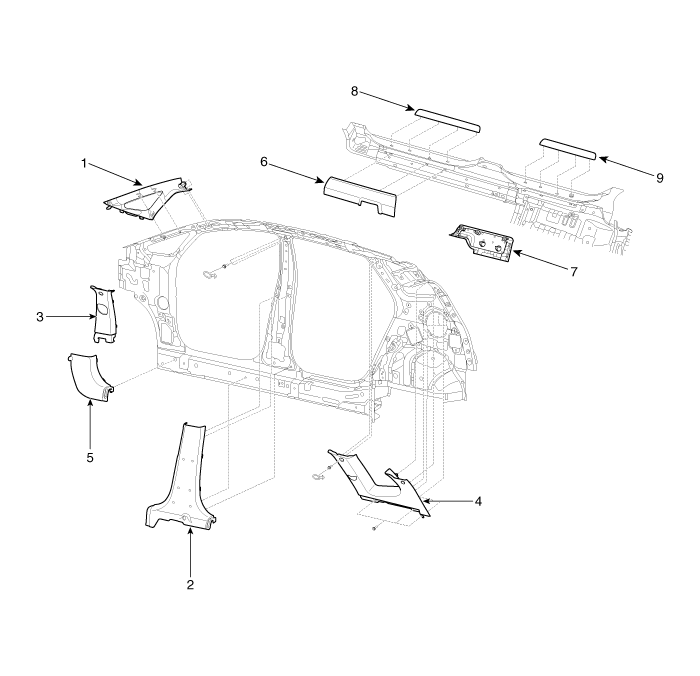

Components

1. Front pillar trim
2. Center pillar lower trim
3. Center pillar upper trim
4. Rear pillar trim
5. Cowl side trim
6. Front door scuff trim
7. Rear door scuff trim
8. Front door step trim
9. Rear door step trim

Interior Trim
...

Door Scuff Trim Components and components location
Component Location 1. Front door scuff trim 2. Rear door scuff trim ...
