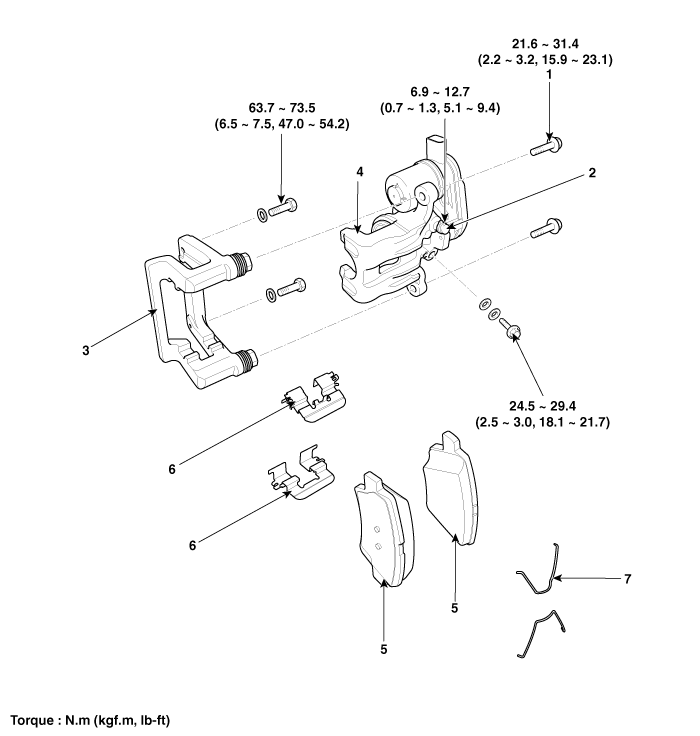

Components [Without EPB]

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body

5. Brake pad
6. Pad retainer
7. Pad return spring

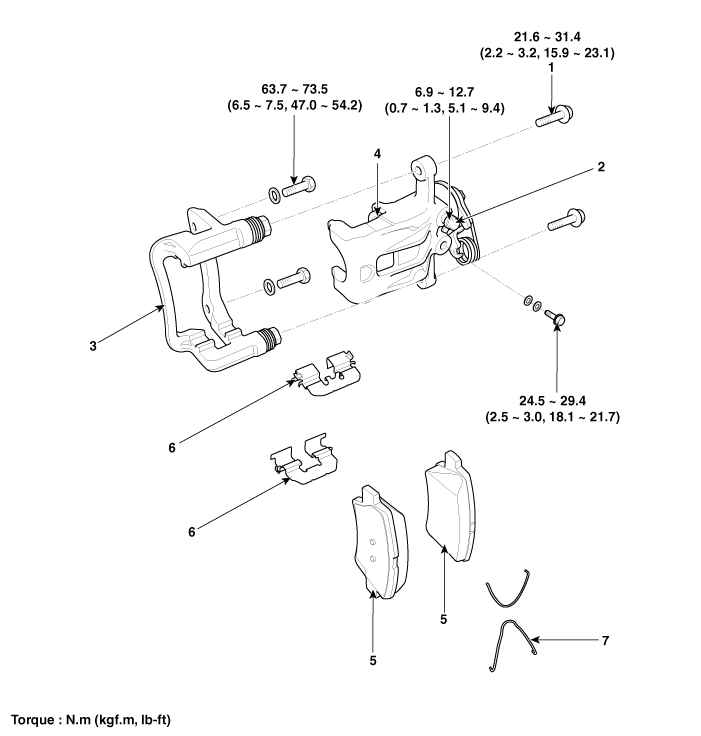

Components [With EPB]

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body

5. Brake pad
6. Pad retainer
7. Pad return spring

Repair procedures

Removal [Without EPB] 1. Remove the rear wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 ...
