Kia Carens: Brake Booster / Components and components location

Kia Carens RP (2013-2018) Service Manual / Brake System / Brake Booster / Components and components location

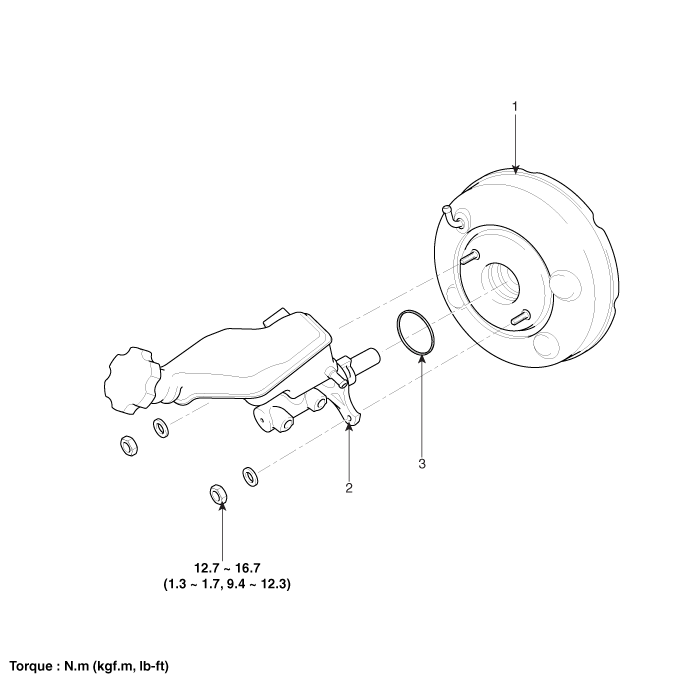

Components

1. Brake booster
2. Master cylinder assembly

3. O-ring

Repair procedures

Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, ...
