Kia Carens: Rear Axle Assembly / Rear Hub - Carrier / Components and components location

Kia Carens RP (2013-2018) Service Manual / Driveshaft and axle / Rear Axle Assembly / Rear Hub - Carrier / Components and components location

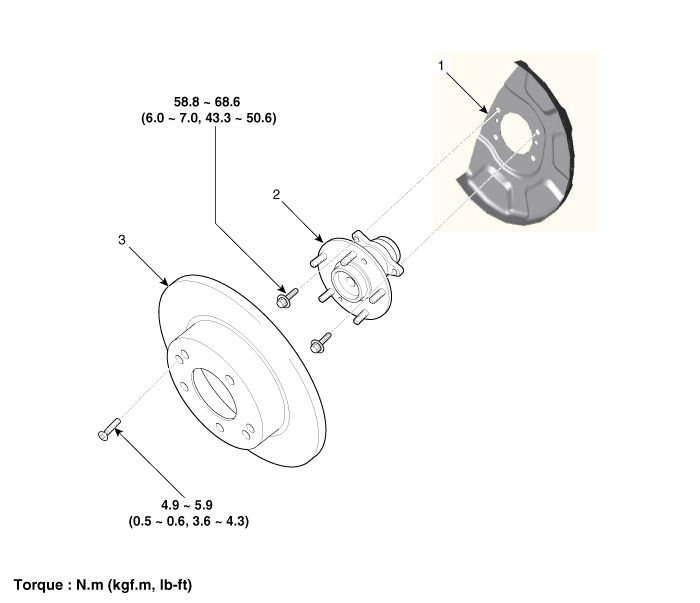

Components

1. Rear dust cover
2. Rear wheel hub assembly
3. Rear brake disc

Rear Axle Assembly / Rear Hub - Carrier
...

Repair procedures
Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the rear w ...
