Kia Carens: Engine Control System / Camshaft Position Sensor (CMPS) Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Engine Control System / Camshaft Position Sensor (CMPS) Schematic diagrams

Circuit Diagram

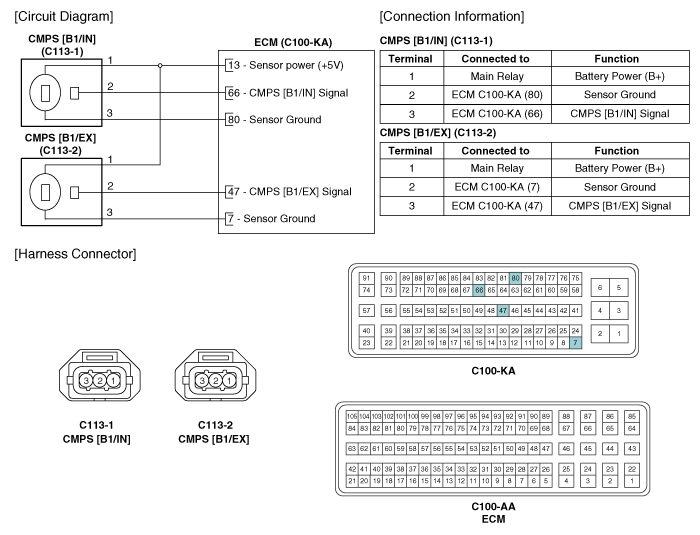

(M/T)

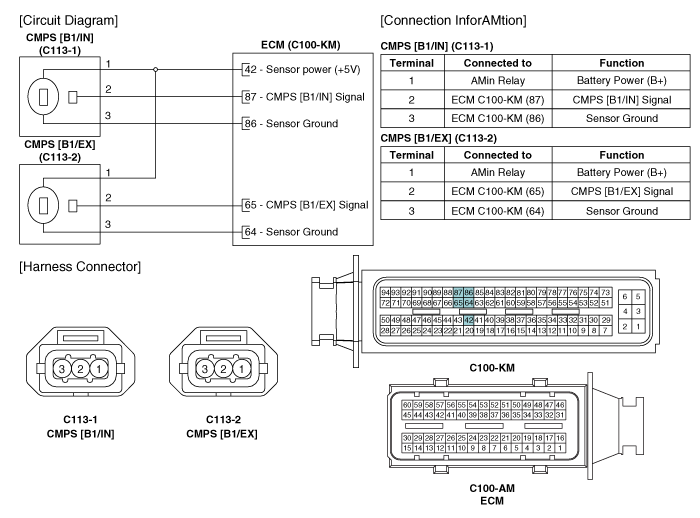

(A/T)

Camshaft Position Sensor (CMPS) Troubleshooting
Signal Waveform ...

Camshaft Position Sensor (CMPS) Repair procedures
Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to “Wave Form” ...
