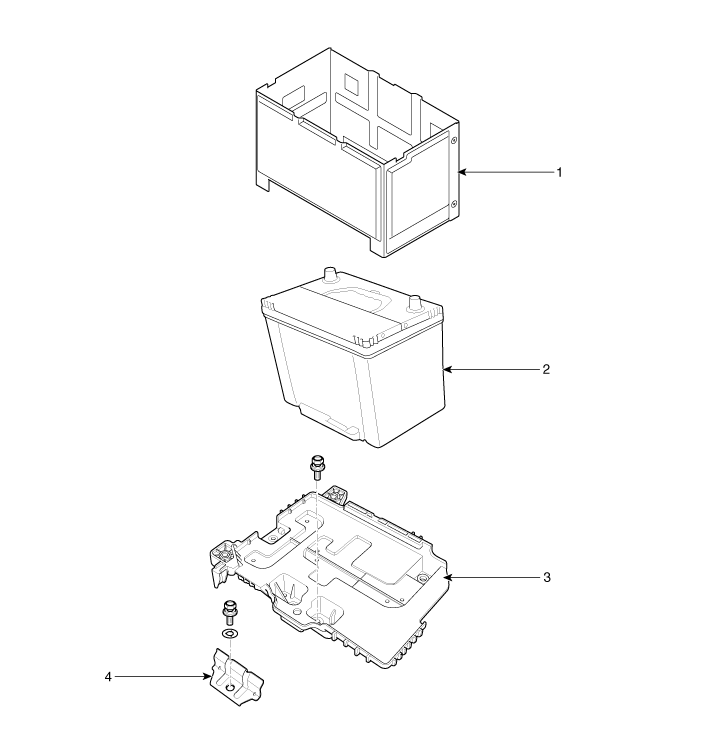

Components

1. Battery insulation pad
2. Battery

3. Battery tray
4. Battery mounting bracket

Battery Specifications

Specifications ▷ CMF60L-BCI Item Specification Capacity [20HR / 5HR] (AH) 60 / 48 Cold Cranking Amperage ...

Battery Repair procedures

Adjustment Battery Charging In general, vehicle battery charging system has three forms. 1. Constant current charge: The battery voltage gradually rises b ...
