Kia Carens: Manual heating and air conditioning / Air intake control

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Automatic climate control system / Manual heating and air conditioning / Air intake control

This is used to select the outside (fresh) air position or recirculated air position.

To change the air intake control position, push the control button.

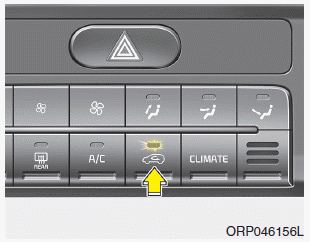

Recirculated air position

■ Type A, B

With the recirculated air position selected, air from the passenger compartment will be drawn through the heating system and heated or cooled according to the function selected.

Outside (fresh) air position

■ Type A

■ Type B

With the outside (fresh) air position selected, air enters the vehicle from outside and is heated or cooled according to the function selected.

✽ NOTICE

Prolonged operation of the heater in the recirculated air position (without air conditioning selected) may cause fogging of the windshield and side windows and the air within the passenger compartment may become stale.

In addition, prolonged use of the air conditioning with the recirculated air position selected will result in excessively dry air in the passenger compartment.

WARNING

Temperature control
The temperature will increase to the maximum (HI) by turning the knob to the right extremely. The temperature will decrease to the minimum (Lo) by turning the knob to the left extremely. When turni ...

Fan speed control
The fan speed can be set to the desired speed by pressing the fan speed control button. To change the fan speed, press the upper button () for higher speed, or press the lower button () for lower ...
