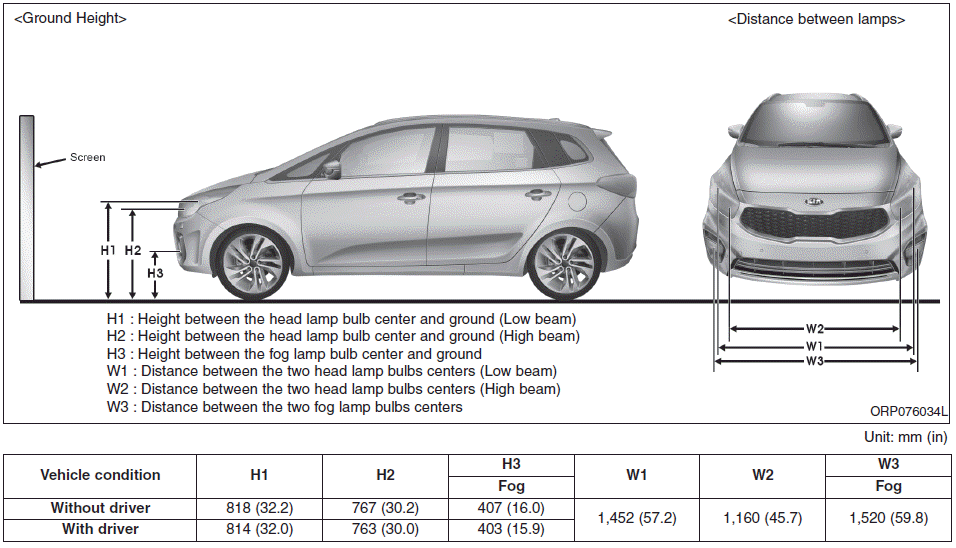

Kia Carens: Headlight and front fog light aiming (for Europe) / Aiming point

Kia Carens RP (2013-2018) Owners Manual / Maintenance / Light bulbs / Headlight and front fog light aiming (for Europe) / Aiming point

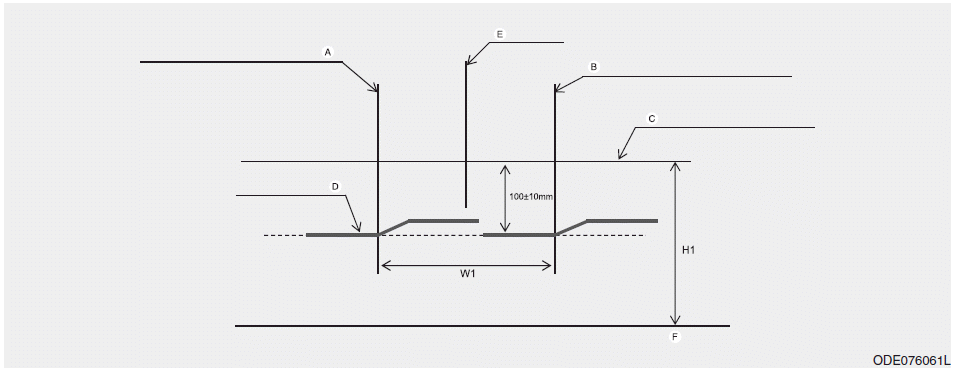

A : Vertical line of the left head lamp (low) bulb center
B : Vertical line of the right head lamp (low) bulb center
C : Horizontal line of head lamp (low) bulb center
D : Cut – Off line
E : Car Axis
F : Ground

Front fog light aiming
The front fog lamp can be aimed as the same manner of the head lamps aiming. With the front fog lamps and battery normal condition, aim the front fog lamps. To aim the front fog lamp up or down, tur ...

Head lamp low beam (LHD)
1. Turn the low beam on without driver aboard. 2. The cut-off line should be projected in the cut-off line shown in the picture. 3. When aiming the low beam, vertical aiming should be adjusted after a ...
