Kia Carens: Headrest (for rear seat) / Adjusting the height up and down

Kia Carens RP (2013-2018) Owners Manual / Safety features of your vehicle / Front seat adjustment - manual / Headrest (for rear seat) / Adjusting the height up and down

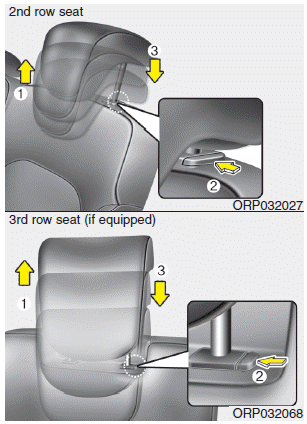

To raise the headrest, pull it up to the desired position (1). To lower the headrest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).

Headrest (for rear seat)
The rear seat(s) is equipped with headrests in all the seating positions for the occupant's safety and comfort. The headrest not only provides comfort for passengers, but also helps protect the hea ...

Removal and installation
To remove the headrest, raise it as far as it can go then press the release button (1) while pulling the headrest up (2). To reinstall the headrest, put the headrest poles (3) into the holes while p ...
