Kia Carens: How the system works / 3. Search for parking space

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Smart parking assist system (SPAS) / How the system works / 3. Search for parking space

✽ NOTICE

✽ NOTICE

✽ NOTICE

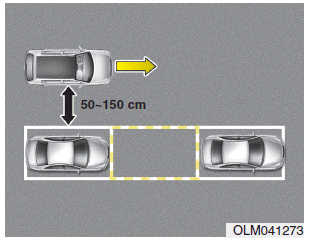

Slowly drive forward maintaining the distance of approximately 50cm ~ 150cm (19.6in.~59.0in.) with the parked vehicles. If not within the distance, the system may not be able to search for a parking space.

CAUTION

After searching for a parking space is completed, continue using the system after checking the surrounding area.

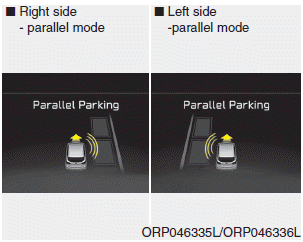

2. Select parking assist mode
Select the parking assist mode by pressing the Smart Parking Assist System button with the shift lever in N (Neutral) or D(Drive) and the brake pedal depressed. The right side parallel mode is s ...

4. Search complete
While driving forward to search for a parking space, the above message will appear with a beep sound if the search is complete. Stop the vehicle and shift to the R (Reverse) position. CAUTION Alw ...
