Kia Carens: Automatic Transaxle Control System / SS-B Solenoid Valve(ON/OFF) Components and components location

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / SS-B Solenoid Valve(ON/OFF) Components and components location

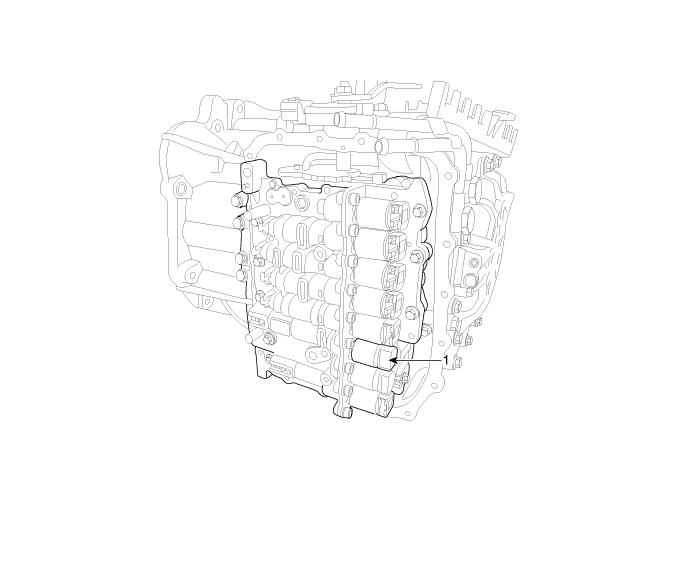

Component Location

1. SS-B Solenoid Valve (ON/OFF)
SS-B Solenoid Valve(ON/OFF) Specifications
Specification Item Specification Control type ON/OFF Current value (mA) 5.0 Coil ...

SS-B Solenoid Valve(ON/OFF) Description and operation
Description • SS-B solenoid valve is ON/OFF type. • When TCM supplies power to solenoid valve, speed range is changed by operat ...
