Kia Carens: Panorama sunroof / Roller Blind Repair procedures

Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Panorama sunroof / Roller Blind Repair procedures

Replacement
[Removal]
1.
Open the roller blind using the panorama sunroof switch.

Leave 10 ~ 20cm (0.3937 ~ 0.7874 in) of the roller blind unopened.

2.
Remove the roof trim.
(Refer to Roof Trim - "Roof Trim Assembly")
3.
Disconnect the roller bind motor connecter (A).
4.
After loosening the mounting screws, then remove the roller blind motor (B).

5.
Remove the roller bind bar.
Removal method (1).
(1)

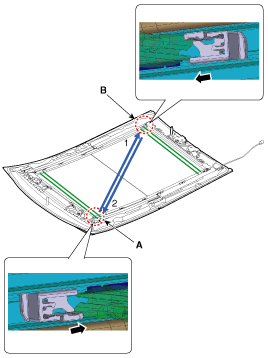

Remove the front and rear roller blind bars by pulling the left side (A) of front roller blind bar and the right side (B) of rear roller blind bar in diagonal direction.

Be careful not to damage the roller blind shoes.

Removal method (2).
(1)

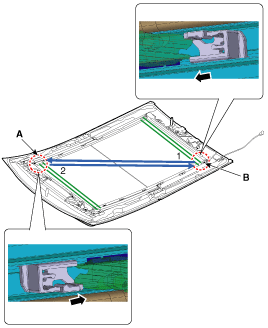

Remove the front and rear roller blind bars by pulling the right side (A) of front roller blind bar and the left side (B) of rear roller blind bar in diagonal direction.

Be careful not to damage the roller blind shoes.

6.
Remove the roller blind lower support (A) by loosening the mounting screws.

[Installation]
1.
Before installing the roller blind (A), roll up it one revolution counterclockwise.

2.
Tighten the mounting screws after installing the roller blind lower support (A).

3.

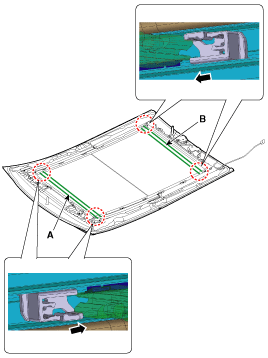

Install the front (A) and rear (B) roller blind bars by inserting them to the shoes in the direction of arrow.


When installing the front roller blind, slightly loosen the screws (A).

4.
Tighten the mounting screws after installing the roller blind motor (B).
5.
Install the roller blind motor connetor (A).

6.
Install the roof trim.
7.
Completely close the movable glass using the panorama sunroof switch.
