Kia Carens: Headrest / Removal and installation

Kia Carens RP (2013-2018) Owners Manual / Safety features of your vehicle / Front seat adjustment - manual / Headrest / Removal and installation

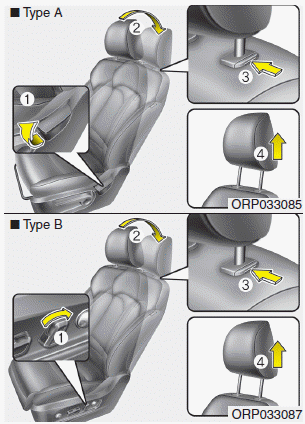

To remove the headrest:

1. Recline the seatback (2) with the recline lever or switch (1).

2. Raise headrest as far as it can go.

3. Press the headrest release button (3) while pulling the headrest up (4).

WARNING

NEVER allow anyone to ride in a seat with the headrest removed.

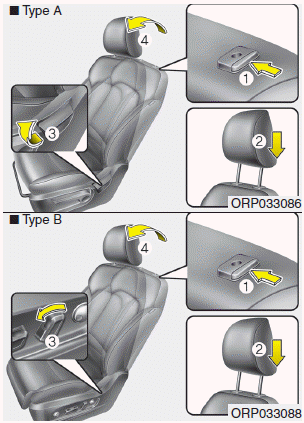

To reinstall the headrest :

1. Put the headrest poles (2) into the holes while pressing the release button (1).

2. Recline the seatback (4) with the recline lever or switch (3).

3. Adjust the headrest to the appropriate height.

WARNING

Always make sure the headrest locks into position after reinstalling and adjusting it properly.

Adjusting the height up and down
To raise the headrest, pull it up to the desired position (1). To lower the headrest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3) ...

Seatback pocket
The seatback pocket is provided on the back of the front passenger’s and driver’s seatbacks. WARNING - Seatback pockets Do not put heavy or sharp objects in the seatback pockets. In an accident ...
