Kia Carens: Automatic Transaxle Control System / Input Speed Sensor Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Input Speed Sensor Schematic diagrams

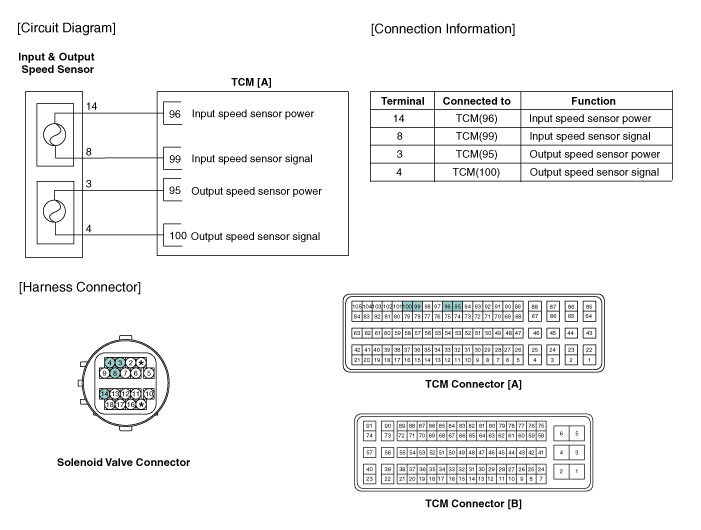

Circuit Diagram

Input Speed Sensor Specifications
Specifications ▷ Type: Hall effect sensor Operation condition [°C(°F)] ((-)40 ~ 150)) -40 ~ 302 Air gap(mm)in. (1.2 ~ 1. ...

Input Speed Sensor Troubleshooting
Signal Waveform Fig 1) Input/Output speed sensor at low speed Fig 2) Input/Output speed sensor at high speed ...
