Kia Carens: Front Door / Front Door Trim Repair procedures

Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Trim Repair procedures

Replacement

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Be careful not to scratch the door trim and other parts.
1.

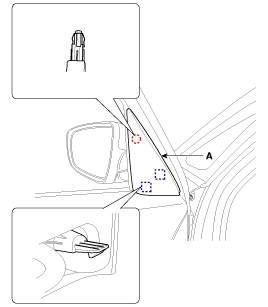

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

2.
Remove the front door pull cap (A) and front door inside handle cap (B).

3.
After loosening the mounting screw, then remove the front door inside handle cover (A).

4.
After loosening the mounting screws, then remove the front door trim (A).

5.
Disconnect the outside rear view mirror switch connector (A) and power window switch connector (B).

6.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
