Kia Carens: Engine Control System / Engine Coolant Temperature Sensor (ECTS) Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Engine Control System / Engine Coolant Temperature Sensor (ECTS) Schematic diagrams

Circuit Diagram

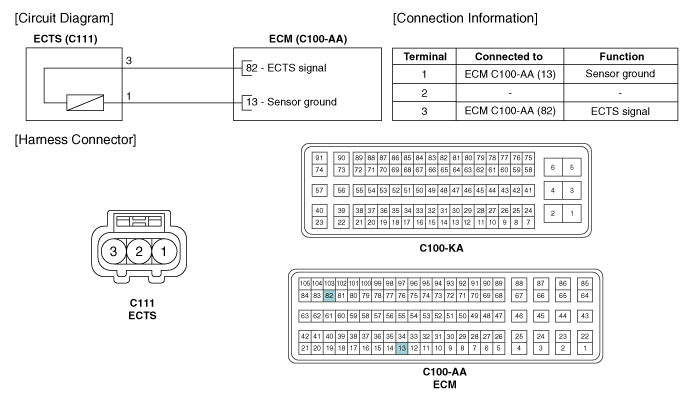

(M/T)

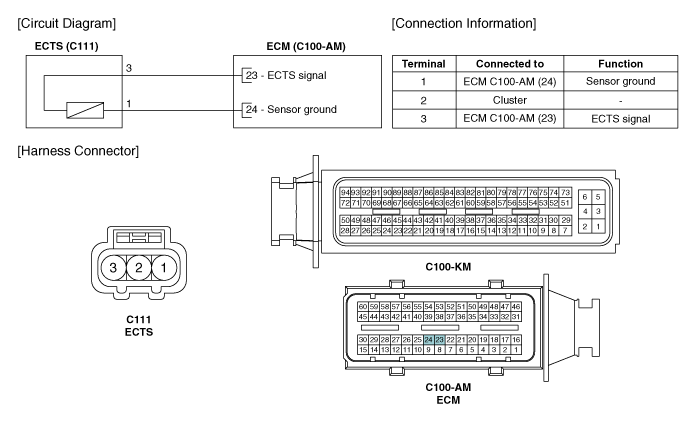

(A/T)

Engine Coolant Temperature Sensor (ECTS) Specifications
Specification Temperature Resistance (kΩ) °C °F -40 -40 48.14 -20 ...

Engine Coolant Temperature Sensor (ECTS) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Remove the ECTS (Refer to "Removal"). 3. After i ...
