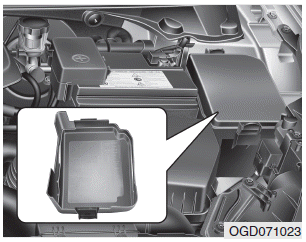

Kia Carens: Fuse/relay panel description / Engine compartment fuse panel (for diesel engine)
![](images/engine_compartment_fuse_panel_for_diesel_engine_-518/1/page.h96(4).png)
✽ NOTICE
The actual fuse/relay panel label may differ from equipped items.

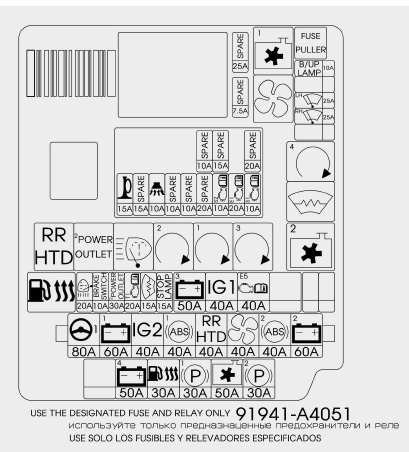

![](images/engine_compartment_fuse_panel_for_diesel_engine_-518/1/page.h97(4).png)
Engine compartment main fuse panel (for gasoline engine)

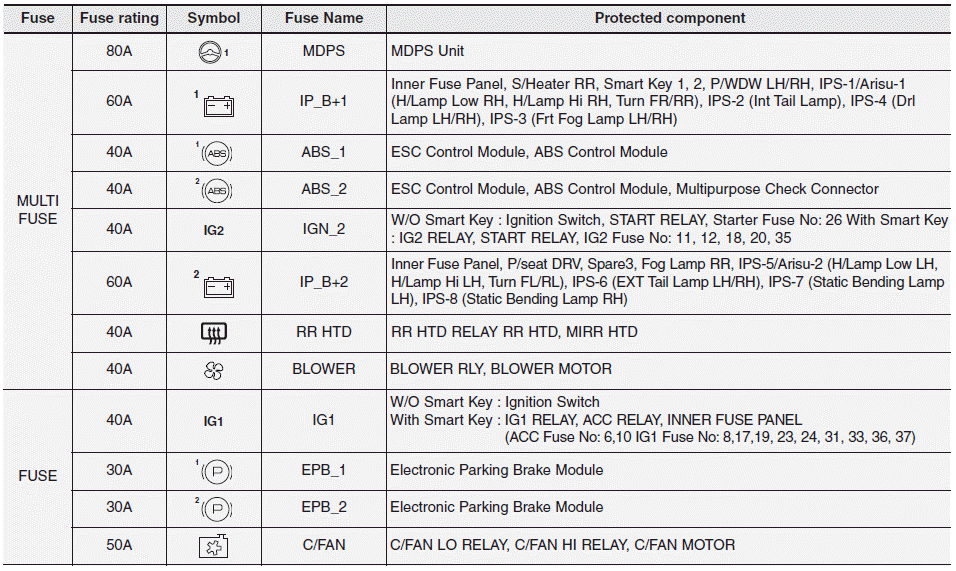

![](images/engine_compartment_fuse_panel_for_diesel_engine_-518/1/page.h98(4).png)

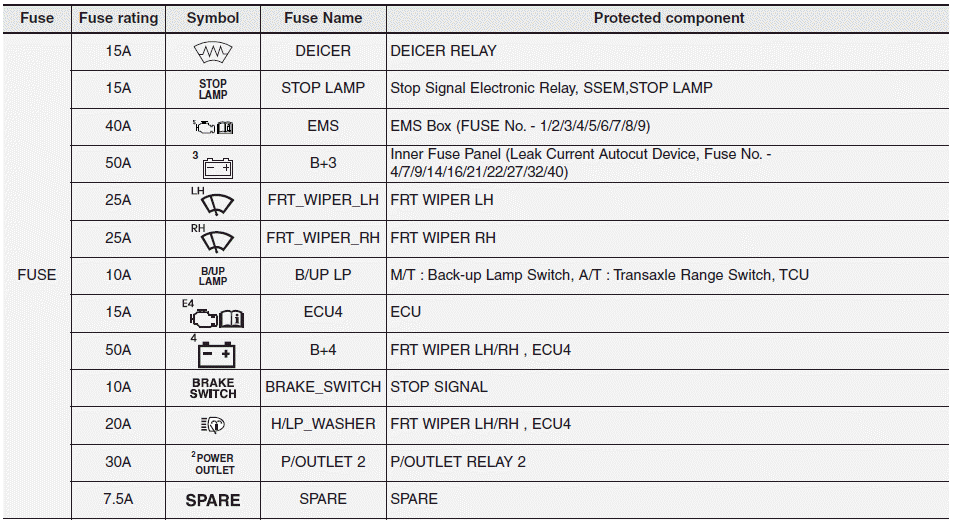

![](images/engine_compartment_fuse_panel_for_diesel_engine_-518/1/page.h99(5).png)

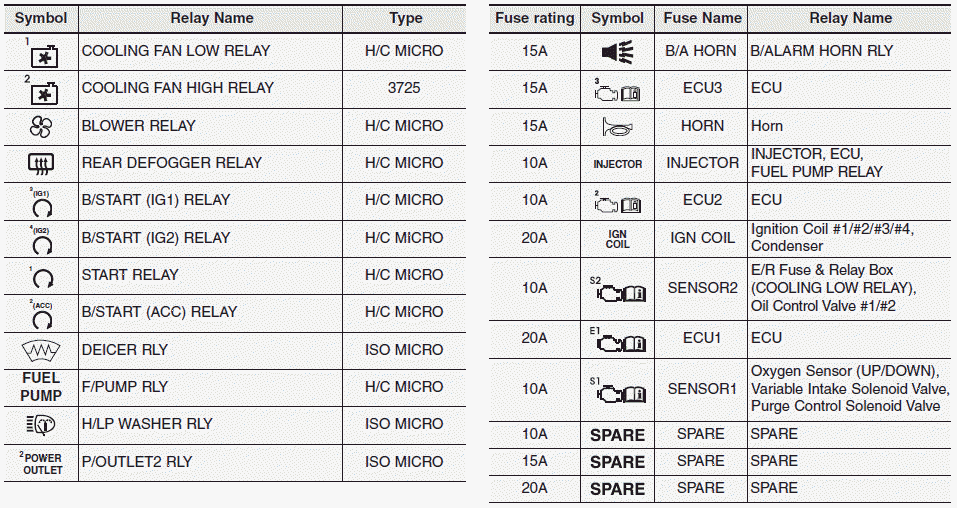

![](images/engine_compartment_fuse_panel_for_diesel_engine_-518/1/page.h1(5).png)

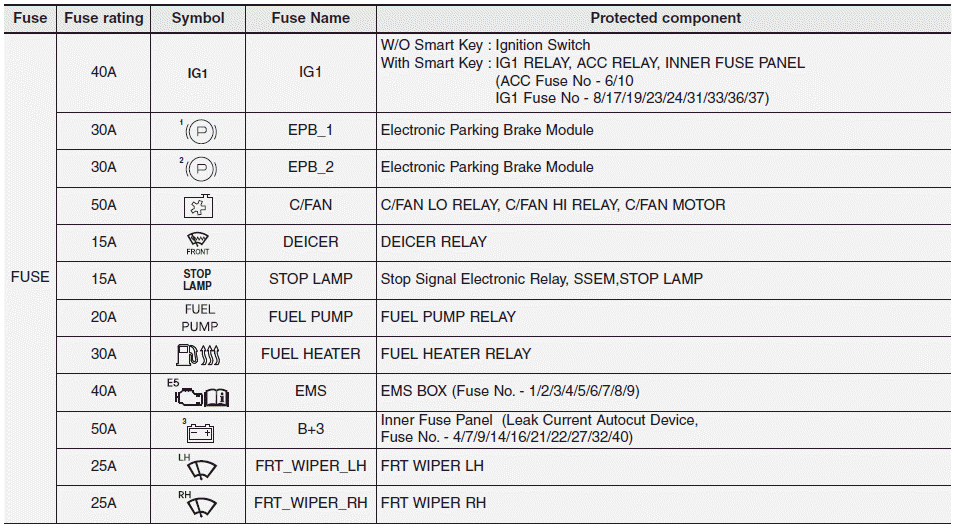

Engine compartment main fuse panel (for diesel engine)

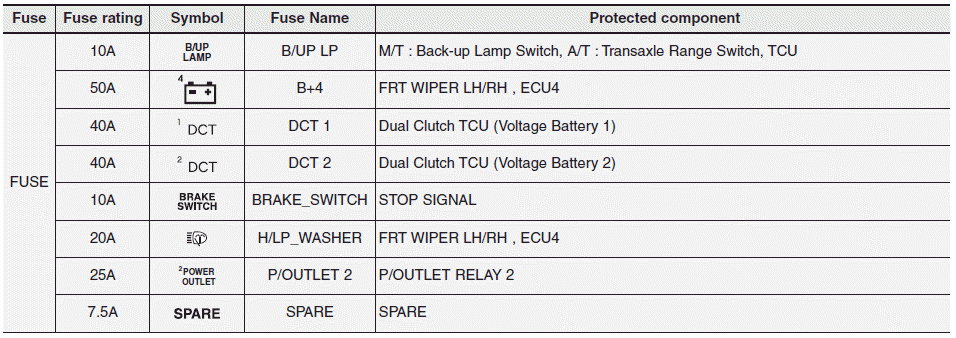

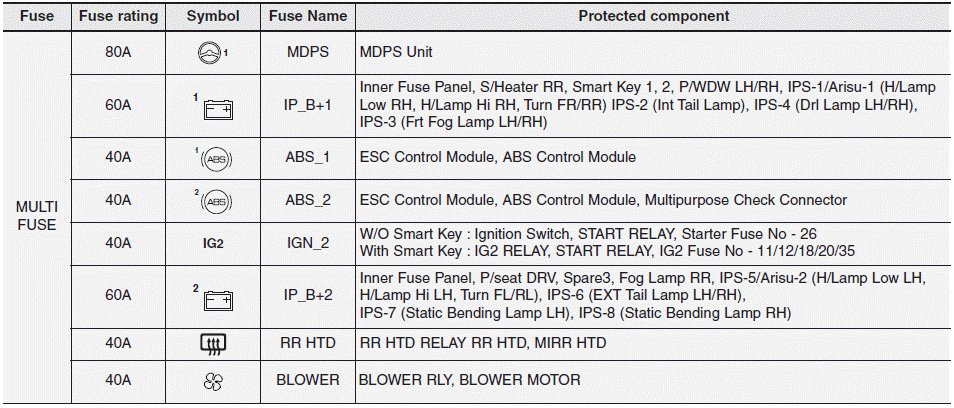

![](images/engine_compartment_fuse_panel_for_diesel_engine_-518/1/page.h2(5).png)
\
![](images/engine_compartment_fuse_panel_for_diesel_engine_-518/1/page.h4(5).png)

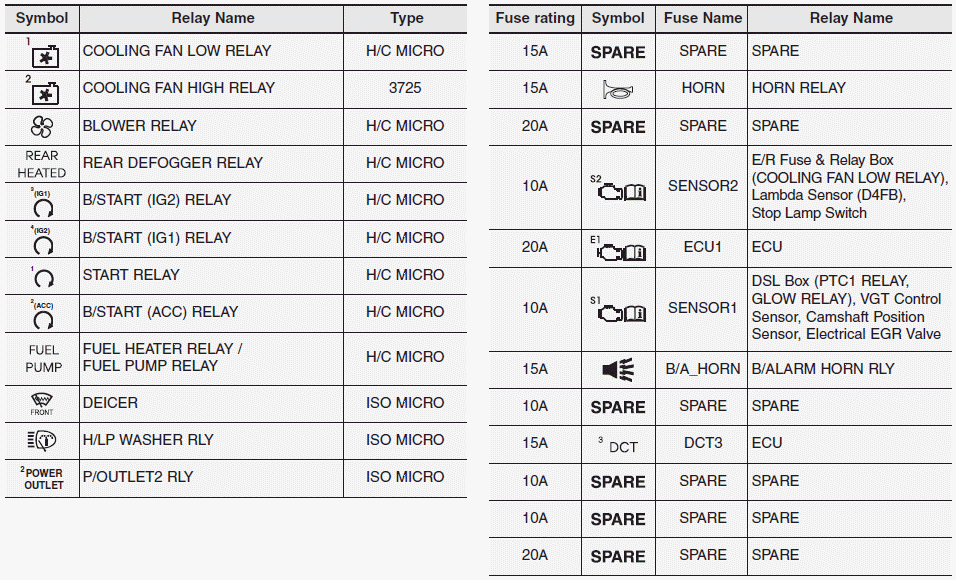

![](images/engine_compartment_fuse_panel_for_diesel_engine_-518/1/page.h5(5).png)
✽ NOTICE
The actual fuse/relay panel label may differ from equipped items.
...
✽ NOTICE
The actual fuse/relay panel label may differ from equipped items.
...
Other information:
WARNING - Hot liquids
Do not place uncovered cups of hot liquid in the cup holder while the
vehicle is in motion. If the hot liquid spills, you may burn yourself. Such
a burn to the driver could lead to loss of control of the vehicle.
To reduce the risk of personal injury in the event of sudd ...
Inspection
1.
Measure the resistance between the terminals.
2.
The measured resistance is not within specification, the blower resistor
must be replaced. (After removing the resistor)
Replacement
...
