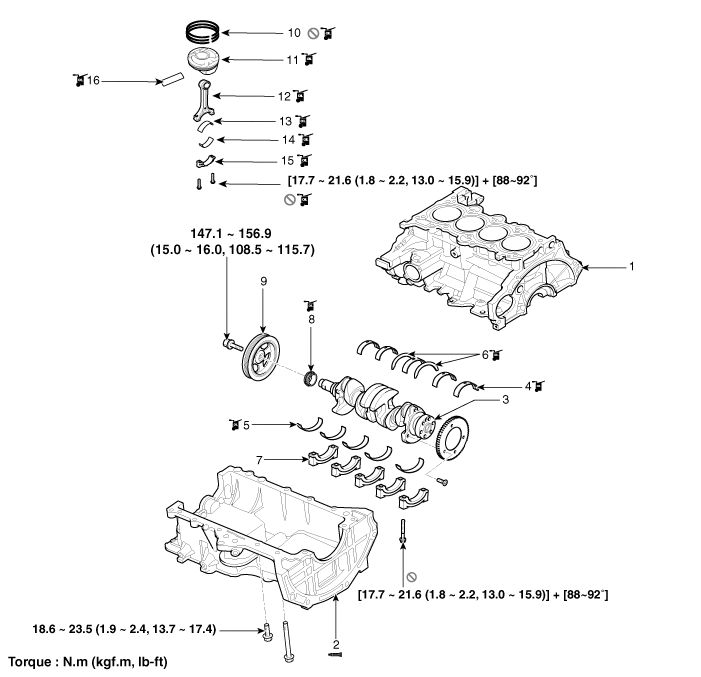

Components

1.  Cylinder block
2.  Ladder frame
3.  Crank shaft
4.  Crank shaft upper bearing
5.  Crank shaft lower bearing
6.  Thrust bearing
7.  Main bearing cap
8.  Crank shaft sproket
9.  Crank shaft pulley
10. Piston ring
11. Piston
12. Connecting rod
13. Connecting rod upper bearing
14. Connecting rod lower bearing
15. Connecting rod bearing cap
