Kia Carens: Clutch Tube / Components and components location

Kia Carens RP (2013-2018) Service Manual / Clutch System / Clutch Tube / Components and components location

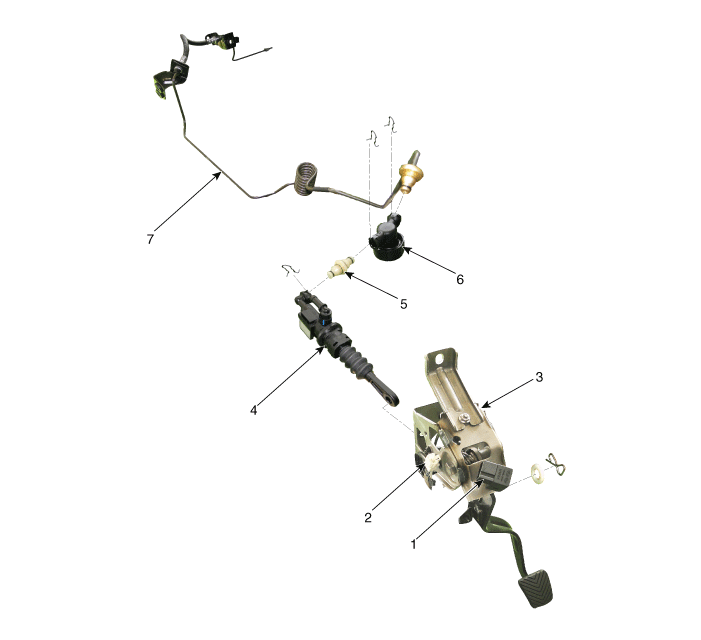

Components

1. Clutch switch
2. Ignition lock switch
3. Clutch pedal assembly
4. Master cylinder assembly

5. Connector (Only diesel)
6. Regulator (Only diesel)
7. Clutch tube

Clutch Tube

...

Components and components location

Components 1. Clutch switch 2. Ignition lock switch 3. Clutch pedal assembly 4. Master cylinder assembly 5. Connector (Only diesel) 6. Regu ...
