Kia Carens: Front Bumper / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Front Bumper / Components and components location

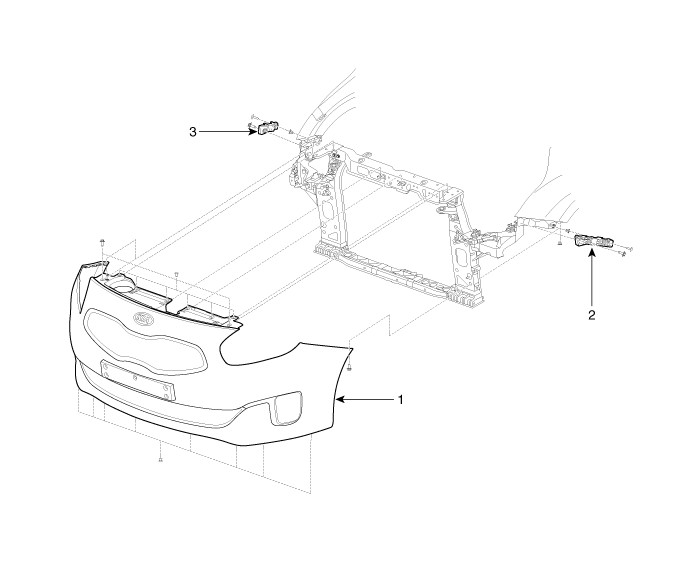

Components

1. Front bumper cover
2. Front bumper side bracket [LH]

3. Front bumper side bracket [RH]
