Kia Carens: Crash Pad / Center Fascia Panel Repair procedures

Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Crash Pad / Center Fascia Panel Repair procedures

Replacement

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
1.

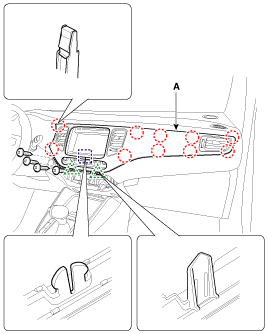

Using a screwdriver or remover, remove the crash pad center garnish (A).

2.
Disconnect the start/stop button connector (A).

3.
After loosening the mounting screws, then remove the A/C & heater controller (A).

4.
Remove the in-car hose (A).
5.
Disconnect the A/C & heater controller connectors (B).

6.
After loosening the mounting screws, then remove the center fascia panel (A).

7.
Install in the reverse order of removal.

Make sure the connector are connected in properly.
Replace any damaged clips.
Center Fascia Panel Components and components location
Component Location 1. Center fascia panel ...

Crash Pad Lower Panel Components and components location
Component Location 1. Crash pad lower panel ...
