Kia Carens: ISG (Idle Stop and Go) system / Auto stop

Kia Carens RP (2013-2018) Owners Manual / Driving your vehicle / ISG (Idle Stop and Go) system / Auto stop

To stop the engine in idle stop mode

With manual transaxle

1. Decrease the vehicle speed to less than 5 km/h (3 mph).

2. Shift into N (Neutral) position.

3. Release the clutch pedal.

With dual clutch transmission

1. Decrease the vehicle speed to 0 km/h.

2. Shift into D (Drive) or N (Neutral) position.

3. Press the brake pedal.

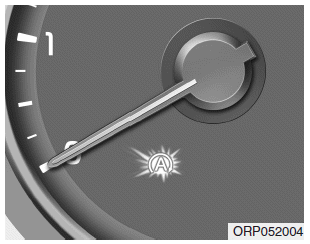

The engine will stop and the green AUTO STOP() indicator on the instrument cluster will illuminate.

✽ NOTICE

You must reach a speed of at least 10 km/h (6 mph) since last idle stop.

✽ NOTICE

If you unfasten the seatbelt or open the driver's door (or engine hood) in auto stop mode, the following will happen:

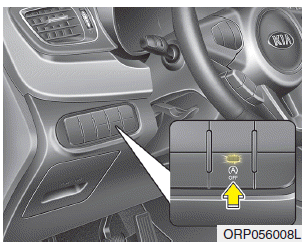

The ISG system will deactivate (the light on the ISG OFF button will illuminate).
A message "Auto Start deactivated Start manually" will appear on the LCD display.
